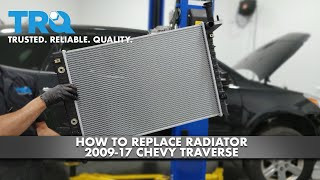

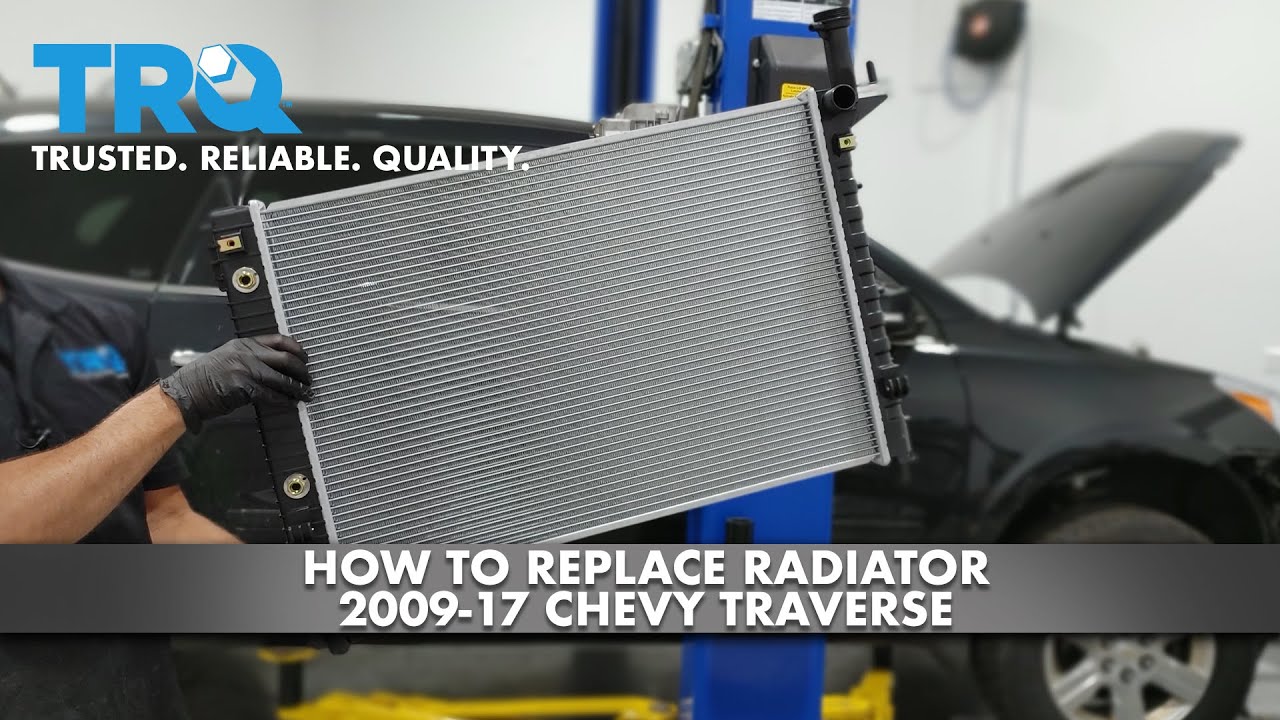

2012 Chevrolet Traverse Radiator TRQ RDA82725

Hi, I’m Mike from 1A Auto. We’ve been selling auto parts for over 30 years!

We'll go inside the vehicle and open up the hood. To remove this plastic shield that's on the front of the engine compartment there are 10 clips: One, two, three, four, five, six, seven, eight, nine, ten. Take a small, flat bladed screwdriver or trim clip tool. Pop them up to loosen them. We'll need to go in like this. Pull them out. If the middle comes out, it's okay. And then this rubber seal is clipped in here. Just kind of pop it out. With a small flat bladed screwdriver, just pop it out. This trim clip tool, these may break when you're taking them out. You might want to have some new ones on hand. If the middle comes out, it just pushes right back in there. Just repeat that for all the clips. These ones are a little trickier because they're deep inside here. Trying to get this in here to pry them up. Just go along and do the same for all of them. This should just lift right off now. And then we'll put it outside.

There's six T20 Torx bolts, or Torx screws on the top of the radio support that hold the bumper on. We're going to remove those. The top of the bumper is loose. We're going to lift the vehicle up to about waist high. You can take the bumper off of the car on the ground, but this will make it easier for us and easier to show what we're doing. Use a seven millimeter socket, an extension, and a ratchet. There're two seven millimeter bolts here. We're going to remove them. They're holding the bumper to the fender. Just going to tilt the wheel in. We need to do that. You're going to repeat this for both sides of the car.

There are two T20 Torx screws that are holding the fender liner to the bumper. You got all the bolts loose, we kind of tug on the bumper. You see it's starting to come loose. Just repeat this for the other side. For both sides remove the two T20 Torx on the bottom of the fender liner where it connects to the bumper. There's 10 millimeter bolts on each side, and this little bracket's holding the front bumper on. Remove both of those. This bracket's already broken, but you would take this bolt out. Same for the other side. Bumper clips in the brackets, so I'm just going to pull on it. Pull it out of the clips. Sometimes you have to give a good tug. Just go along all the way right along the edge. I'm going to do the other side now the same way. I'm going to support the bumper like that. Pull away from the vehicle.

There are fog lights, or front marker lights. I'm going to unplug those. Do the same for both sides. I'll put our bumper aside.

I'll reinstall the bumper. Don't forget to reconnect the turn signal lamps. Both sides, just snap them into the connector. It'll click when it's in. Put the bumper back into place. Push it up into the bracket. Lift it up and in. Get both sides set. Just clip it into place.

Reinstall the bolts, screws, and clips. Your bracket isn't broken here, this one's broken, but you reinstall the 10 millimeter bolts. It holds the bottom of the bumper on. You do the same for the other side. Reinstall the two Torx screws. You do the same for the other side. Reinstall the two seven millimeter bolts or screws. One had a wider head, one had a smaller head. The smaller head one was towards the inside.

Reinstall the six Torx screws, one on the top of the bumper. Install the upper cover in the inch compartment. Just slide it under that ground point. It's going to go over these rubber mounts here, both sides. Let's go under this weather strips. Same thing for both sides. Reinstall all the push clips. It's easier to push the clips in if you pull out the center part. This is the last one. And that is complete. Close your hood.

Thanks for watching. Visit us at 1AAuto.com for quality auto parts, fast and free shipping, and the best customer service in the industry.
