Replaces

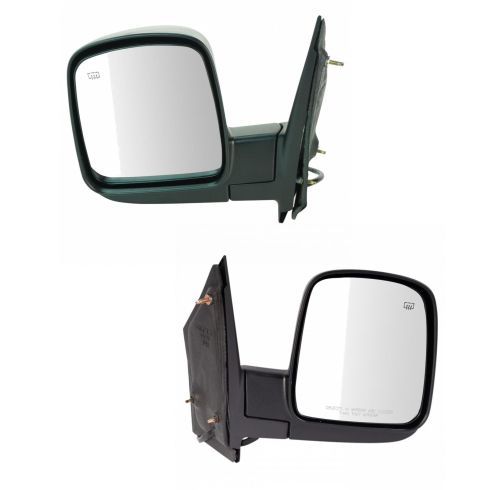

2003-07 Chevy GMC Mirror Set

Frequently bought together

Description
Vehicle Fit
Warranty & Shipping
How-To & Tools
Q&A

Part Details

  • Mirror Set Includes:
      (1) Passenger Side Mirror
      (1) Driver Side Mirror
  • Mirror Operation:   Power
  • Mirror Heating Type:   Heated
  • Side View Mirrors Features & Benefits:
      Backed by our limited lifetime warranty
      Direct-fit replacement
      Manufactured with high quality materials
      Mirror glass meets or exceeds DOT standards

Specifications:

  • Driver and Passenger Side
  • Power mirror
  • Heated mirror
  • Injection molded black plastic housing
  • Direct replacement
  • Built to strict quality control standards

Special Note:

Replacement mirrors will only work for vehicles with the same exact options. If you do not have the options listed in specifications, the mirrors may not function properly.

Item Condition: New

Lifetime Warranty

This item is backed by our limited lifetime warranty. In the event this item should fail due to manufacturing defects during intended use, we will replace the part free of charge.

    Removing power windows requires removing the door panel. Removing manual windows does not.

  1. step : Removing the Door Panel (2:24)
    • Remove the door panel if you have power mirrors
    • If you have manual mirrors, proceed to Step 2
    • Pry off the door pull trim piece with a flat blade screwdriver
    • Remove the six Phillips head screws inside the door pull
    • Pry off the door panel bezel with a flat blade screwdriver
    • Remove the two Phillips head screws inside the door handle
    • Pry off the switch panel by hand
    • Disconnect the door lock wiring harness
    • Disconnect the window switch wiring harnesses
    • Disconnect the mirror switch wiring harness
    • Pry off the mirror base trim piece by hand
    • Pry out the door panel by hand
    • Lift the door panel up and off
  2. step : Removing the Mirror (1:03)
    • Pull off the mirror base trim piece if you have not already done so
    • Remove the three 10mm nuts from the mirror
    • Pull the mirror off
  3. step : Installing the Mirror (1:48)
    • Put the mirror into place
    • Fasten the three 10mm nuts onto the mirror
    • Continue to Step 4 if you have removed the door panel
    • Otherwise, push on the mirror base trim piece
  4. step : Reinstalling the Door Panel (4:15)
    • Lift the door panel into place
    • Push in the door panel clips
    • Connect the door lock wiring harness
    • Connect the mirror switch wiring harness
    • Connect the window switch wiring harnesses
    • Push the switch panel into place
    • Insert the two Phillips head screws inside the door handle
    • Push on the door handle bezel
    • Push on the mirror base trim piece
    • Insert the six Phillips head screws inside the door pull
    • Push on the door pull trim piece

Tools needed for replacement:

    Ratchets & Related

  • Ratchet

  • Screwdrivers & Related

  • Phillips Head Screwdriver
  • Flat Blade Screwdriver

  • Sockets - Metric

  • 10mm Socket

Customer Q&A
Ask a question to 1A Auto customers who purchased the product
No questions have been asked about this item.

Fits the following Makes:

Year Make Model Description
2003-2007Chevy Express 1500 Van Chevy Express 1500 Van Power Heated Mirror Set
2003-2007Chevy Express 2500 Van Chevy Express 2500 Van Power Heated Mirror Set
2003-2007Chevy Express 3500 Van Chevy Express 3500 Van Power Heated Mirror Set
2003-2007GMC Savana 1500 Van GMC Savana 1500 Van Power Heated Mirror Set
2003-2007GMC Savana 2500 Van GMC Savana 2500 Van Power Heated Mirror Set
2003-2007GMC Savana 3500 Van GMC Savana 3500 Van Power Heated Mirror Set
