Created on:
Tools used
Brought to you by 1AAuto.com, your source for quality replacement parts and the best service on the Internet.
Hi, I'm Don from 1A Auto. I hope this how-to video helps you out, and next time you need parts for your vehicle, think of 1AAuto.com. Thanks.
In this video, I'm going to show you how to replace a broken inside rear door handle on this 2006 Nissan Sentra. It's pretty much the same for any 2000 to 2006. Tools you'll need: You'll need a Philips screwdriver and either a 10mm socket with a ratchet or a 10mm wrench
Now, to remove this, there is a little Phillips clip in here. Just turn it lightly with a Phillips screwdriver. If it doesn't come out, you don't want to press on it. It should come right out. If it doesn't come out, you might want to pry on it with a small flat-blade screwdriver. This does end up coming right out. Now, here, you want to pull up on this.
That whole thing comes out and then you pop on this and you can disconnect your window switch, by pressing this button right there. You may find that you need to use a small screwdriver. Press on the button, and pull off. Use your screwdriver here. You'll want to gently pry out on this bevel on the top and on the bottom, and then, on the back here as well.
Right here, there are two bolts. They have Phillips heads in them but it may be easier just to use a 10 millimeter wrench. Once those are off, you can reach right down here. You feel a hole in the door panel. Then, just give a good, quick, firm pull. It releases the clips. There is one more clip right up in here. Once those clips are released, then lift up on the door panel. Bring it right out.
On this inside door handle, just pry this. You'll see some tabs here. You pry up on the tabs and pull out on this little cup here. Pry up, and that comes right out. There's a Philips screw right in here. Remove that. What you'll want to do is slide your handle back and pull it out. Now, twist the handle like this, okay, and look in. Flip that handle. The rod's up. This one actually just came right out. Then your handle's out.

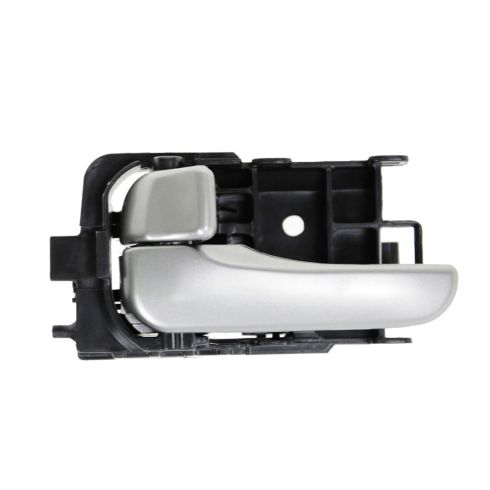

Here's the new handle from 1A Auto. It's a little hard to film this, but basically, all you do is pull the rods out, and have the handle kind of out like this. Put that first rod down in and then, usually, you want to have your lock pushed that way. Pull this rod over. Put it in. Be sure you get it down into the hole here. Then, bring the handle over. The other rod came out, so pull that one back over. Get it in. I've got to make sure I've got both of them in. Now, put your handle in, make sure it's flush to the door, and slide it forward. Put the Philips screw back in. Put this bezel in place.
To reinstall your panel, bring it up, line it up. You've got to really push in the back here. Then, slide it down into place. You just kind of use your putty knife basically to just kind of pry this part right up. Now, just reach down and make sure that your power window harness comes through. Then, you can set all the clips around the edge. Your two bolts: you just reinstall them. A screwdriver is good enough. Plug your switch back in. The front goes down in first. This goes right in. Make sure you press it down firmly, get it locked in and then this back right around the door handle. Make sure it's locked on perfectly. For this, you just push it right back into place.
We hope this video helps you out. Brought to you by www.1AAuto.com, your source for quality replacement parts and the best service on the Internet. Please feel free to call us toll-free, 888-844-3393. We're the company that's here for you on the Internet and in person.
Tools used
Brought to you by 1AAuto.com, your source for quality replacement parts and the best service on the Internet.
Hi, I'm Mike from 1A Auto. I hope this how-to video helps you out, and next time you need parts for your vehicle, think of 1AAuto.com. Thanks.
In this video, we're going to show you how to replace the front inside door handle in this 2006 Nissan Sentra. We show you on the driver side, but the passenger side is basically the same procedure. The only tools you'll need include a Phillips screwdriver and a small flat blade screwdriver.
If you manage to take this panel and lift up - you have to get your fingers underneath and underneath back in here and lift up firmly - it comes right out. Then this lifts up firmly as well. Then right back here is a little tab on your harness, push that in and disconnect the switch harness. Now, right in behind here there are two 10mm bolts or you can use a Phillips screwdriver, although using a socket and ratchet is a little easier. With a screwdriver you do have to press very hard to get them going. Those come out.
There is another small clip right up in here with a Phillips screw. Put your screwdriver in there and lightly turn it. You may have to just reach in behind with your fingernail or a flat blade screwdriver and try and pry that out because it doesn't always come right out. There's also another Phillips screw right down here at the bottom of the door panel. Remove that screw.
Take your small screwdriver and carefully pry out this bezel around the door handle. Pull out on the door panel. It pulls right up and off. Next, you want to remove this cup. There are a couple of little tabs right up here. Use your small screwdriver again, and pry those up. Pull your handle out and off. Then behind there is a Phillips screw. Remove that screw. Slide the handle back and it comes out. Then you can actually pull your handle out like this. Remove your water shield some, here. These rods just, you pull your head all like that and then push the rods up and they come out.
The new door handle from 1A Auto goes right back in the same way. You can tell which is which. The door lock will have a dent in it. Bring that one up, we'll put the latch one in first. Just pull it out. Look back in there, you can see where it goes into place. Put it in and then turn your handle like that. Do the same thing for the lock. Pull it out and put the rod down into the handle. Once you get it then just twist your handle like that. Put your handle against the door and push it on. There are three tabs. Make sure all three go in. Make sure the handle is flush against the door. Put your Phillips screw back in. Put this back in place and push it on.
We're going to install our door panel which is pretty easy. Just make sure that your harness comes through. Hang the door panel up, make sure to pull it down all the way, like that. Then your clips should line up. You just need to hit on it a couple of times. This one down here, I'm just going to lift up a little bit. Put these two Phillips screws back in. This little plastic one just pushes right into place. Screw underneath right into place. This goes on, pushes in to lock in place. Reconnect your power window switch. Put the front down in first, then lock the back in place. Put this right into place and press down and on.
We hope this video helps you out. Brought to you by www.1AAuto.com, your source for quality replacement parts and the best service on the Internet. Please feel free to call us toll-free, 888-844-3393. We're the company that's here for you on the Internet and in person.
