100% New: Manufactured to tighter tolerances for extended service life
Neoprene Boots: Improved durability compared to stock material
Moly Greased: Specifically-designed grease shield to reduce premature wear
Application Specific Design: No modification
Description
TRQ CV (constant velocity) drive axles are manufactured using premium raw materials designed to restore original performance. TRQ CV drive axles are new, so there is no core charge with your TRQ purchase. TRQ-designed drive axles utilize neoprene boots, moly grease, stainless steel clamps, and heat-treated ball tracks to ensure extended service life. Each TRQ axle is application-specific so each spline and thread will mate properly for a seamless fit. All products are fit and road-tested in our Massachusetts R&D facility to ensure we deliver on our promise of Trusted Reliable Quality.
CV axles are designed to transmit the power from your vehicle's drivetrain to the wheels while being able to flex and pivot to the demands of the steering and suspension systems. If your vehicle is making clicking noises at lower speeds or when making turns, it may be time to replace your CV axles with our 100% brand new assemblies.
Attention California Customers:
WARNING: This product can expose you to chemicals including Lead and Lead Compounds, which are known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
Lifetime Warranty
This item is backed by our limited lifetime warranty. In the event that this item should fail due to manufacturing defects during intended use, we will replace the part free of charge. This warranty covers the cost of the part only.
FREE Shipping is standard on orders shipped to the lower 48 States (Contiguous United States). Standard shipping charges apply to Hawaii and Alaska.
Shipping is not available to a P.O. Box, APO/FPO/DPO addresses, US Territories, or Canada for this item.
Expedited is available on checkout to the United States, excluding Alaska, Hawaii.
Final shipping costs are available at checkout.
How To Replace Front Axle 2004-08 Ford F-150
Created on:
Tools used
13mm Socket
A Piece of Pipe (for leverage)
Torque Wrench
Hammer
Pry Bar
18mm Wrench
Jack Stands
21mm Socket
21mm wrench
Flat Blade Screwdriver
12mm 12-Point Socket
8mm Socket
Ratchet
Floor Jack
Assistant
1. Removing the Wheel
Pry off the center cap with a flat blade screwdriver
Loosen the 21mm lug nuts with the vehicle on the ground
Raise the vehicle with a floor jack
Secure the vehicle on jack stands
Remove the lug nuts
Pull off the wheel
2. Loosening the Outer Tie Rod
Turn the wheel
Remove the 21mm nut from the outer tie rod
Leave the 21mm nut on a couple threads
Hammer the knuckle until the outer tie rod loosens
Set the outer tie rod off to the side
3. Loosening the Axle
Remove the hub nut cap with a pair of pliers
Remove the 13mm hub nut
Replace the 13mm nut by a few threads and tap the nut with a hammer to push the axle through
Remove the nut
Have an assistant hold the brakes
Remove the 12mm bolts from the axle with a 12mm 12-point socket
4. Removing the Axle
Remove the 21mm nut from the bottom of the upper control arm
Thread the 21mm nut on
Loosen the upper control arm with a hammer
Remove the nut
Manuever the wheel knuckle to the side without straining the brake lines
Remove the axle from the wheel knuckle
5. Installing the New Axle
Insert the axle into place
Insert the upper control arm into the wheel knuckle
Tighten the 21mm nut
Tighten the 12mm bolts into the axle
Torque the 12mm nuts to 60 foot-pounds in a crossing pattern
Tighten 13mm hub nut
Torque the hub nut to 20 foot-pounds
Tap the hub nut cap into place
Re-clip and realign any lines that may have come undone
6. Reinstalling the Outer Tie Rod
Push the outer tie-rod up through the wheel knuckle
Replace the 21mm nut
Torque the 21mm nut to 111 foot-pounds
Tighten the bolt on the upper control arm
Torque the upper control arm 21mm nut to 111 foot-pounds
Tighten the 18mm nut to the sway bar link
Jack underneath the control arm
Torque the lower strut bolt to 150 foot-pounds
7. Reattaching the Wheel
Slide the wheel into place
Start the lug nuts by hand
Tighten the lug nuts preliminarily
Lower the vehicle to the ground
Tighten the lug nuts to 120 foot-pounds in a crossing or star pattern
Reattach the center cap
Brought to you by 1AAuto.com, your source for quality replacement parts and the best service on the Internet.
Hi, I'm Mike from 1A Auto. I hope this how-to video helps you out, and next time you need parts for your vehicle, think of 1AAuto.com. Thanks.
In this video, we're going to show you how to replace a front axle on this 2005 Ford F-150 with 4-wheel drive. We show you on the driver side, but the passenger side is the same procedure. The items you'll need for this is a new front axle from 1AAuto.com, an 8mm, 13mm, and 21mm socket and ratchet, a piece of pipe for some extra leverage, a 12mm 12-point socket, an 18mm and 21mm wrench, pliers, pry bar, hammer, torque wrench, and jack and jack stands.
Start off by prying off the hub cap. Then loosen up these lug nuts using a 21mm socket and ratchet and a piece of pipe for some extra leverage. Once you get each of them loosened up, you can raise the vehicle and remove them the rest of the way. Now pull the wheel off.
Turn the wheel and then remove this 21mm nut at the top of your outer tie rod. Once you remove it, you want to just put it back on just a couple threads. Now hammer the knuckle until the outer tie rod drops down. Now you can remove that nut, and just set your outer tie rod off to the side.
Using a pair of pliers remove this cap and then loosen up and remove that 13mm nut. Then you just want to put it back on, just a few threads, tap it with a hammer and make sure it goes through. Then remove the nut the rest of the way. On the other end of the axle there's a series of 12mm bolts. You just need to use a 12mm 12-point socket and then a pry bar to hold the wheel and just loosen those up. We'll fast-forward as Mike removes all six of those. When you remove that last one, just push the axle down to the side.
Now spray this 21mm nut up here on the bottom of your upper control arm, and then remove that nut and put it back on just a few threads. With the nut back on a few threads, just hammer the wheel knuckle until the upper control arm loosens up. Now just lift up on the wheel knuckle and then remove that nut. You can just set the wheel knuckle off to the side carefully. You don't want it to strain those brake hoses. Then just tap the axle and pull it out of the wheel knuckle. You want to feed the axle towards the left side, towards the front of the vehicle. Just angle it down and pull it down and out.

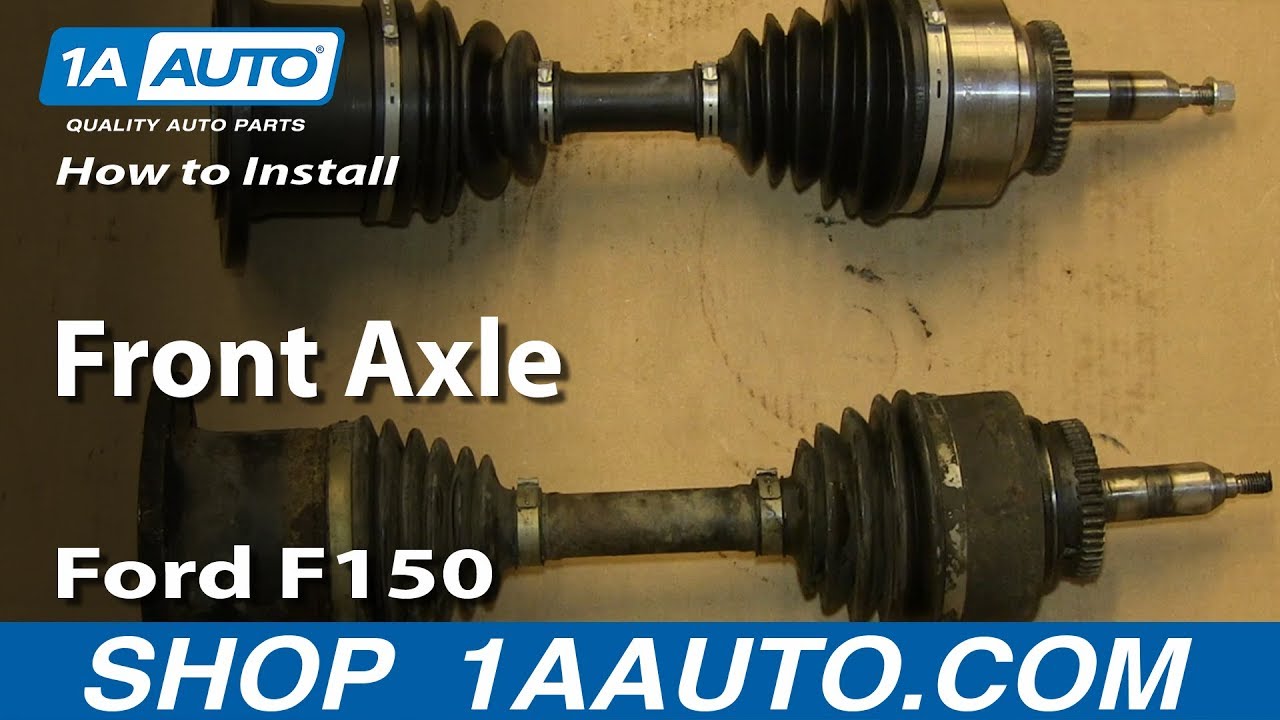

On the bottom is the old front axle; above it is the new one from 1A Auto. You can see they're identical and they'll fit exactly the same. Making sure they're tightened. Now you can remove the jack and feed your axle back into place. You want to feed it back in the same way that you pulled it out.
Now you can take your upper control arm and push it back into the wheel knuckle. Once you push it through, just put that 21mm nut on there to hold it in place. Line up the axle and replace those 12mm bolts. We'll fast-forward as Mike does this. Now tighten each of those to 60 foot-pounds in a crossing pattern. You can see we torqued that one. Then you want to turn the wheel until you get the one on the opposite side. Then torque that one. You want to just repeat this process with each of them. Now replace this 13mm nut and torque it to 20 foot-pounds. Then replace that cap and just tap it into place.
If any of the lines on the back came undone, make sure you push them back in and re-clip them. Then push your outer tire rod up to the wheel knuckle and replace the nut. Then torque that to 111 foot-pounds. Now just tighten up this bolt on your upper control arm. If the stud spins, use a 10mm socket and ratchet. Then you want to torque this to 111 foot-pounds. Then tighten up the nut on the bottom of your sway bar link. Jack up underneath the lower control arm to simulate a wheel being in place. Torque the lower strut bolt to 150 foot-pounds.
Now we'll fast-forward as Mike replaces the wheel and replaces the lug nuts and tightens them preliminarily. Then he lowers the vehicle and tightens them the rest of the way. Then torque each of them in a crossing pattern to 120 foot-pounds. Then just replace your hubcap and you're all set.
We hope this video helps you out. Brought to you by www.1AAuto.com, your source for quality replacement parts and the best service on the Internet. Please feel free to call us toll-free, 888-844-3393. We're the company that's here for you on the Internet and in person.
