Ford F150 F150 Heritage Front & Rear Semi-Metallic Performance Brake Kit

Frequently bought together

Description
Vehicle Fit
Warranty & Shipping
How-To & Tools
Product Reviews
Q&A

Part Details

  • Brake Pad Bonding Type:   Premium Posi
  • Wheel Lug Count:   5 Lug
  • Rear Brake Rotor Venting Type:   Solid
  • Brake Pad Friction Material:   Semi-Metallic
  • Brake Rotor Type:   Cross Drilled & Slotted
  • Front Brake Rotor Diameter:   12.13 in. (308mm)
  • Rear Brake Rotor Diameter:   13.15 in. (334mm)
  • Front Brake Rotor Venting Type:   Vented

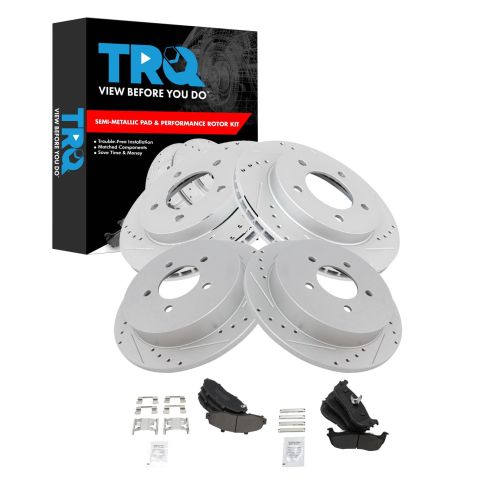

  • Kit Includes:
      (1) Rear Semi-Metallic Brake Pad Set
      (1) Front Semi-Metallic Brake Pad Set
      (2) Front Performance Brake Rotors
      (2) Rear Performance Brake Rotors
  • Product Line:   Performance
  • Brake Pad Features & Benefits:
      OE Grade Multi-Layer Shim
      Positive Mold Technology
      Environmentally Compliant

This performance brake rotor & posi pad set is just what you need to get your vehicle stopping in good order again!

Brake Pad Specifications:

  • Premium Posi Semi-Metallic brake pads
  • 8 Piece Front & Rear brake pad set
  • Includes shims
  • Direct replacement

Brake Rotor Specifications:

  • Comes as a set of 4
    • Includes both LH (Driver) & RH (Passenger) Side FRONT & REAR
  • Cross drilled, Slotted, And Zinc Coated
  • Direct replacement
  • Fits 4 Wheel Drive Models Only
  • 5 wheel stud holes

Premium Positive Molded Brake Pads Features and Benefits:

  • The very same manufacturing process the original equipment manufacturers use
  • High density friction material for long pad life
  • Less resin content virtually eliminates brake fade and glazing
  • Reduced dusting for both Ceramic and Semi-metallic materials
  • Quality multi-layered shims and pad chamfering provide smooth and quite braking
True Non-Interference Vane Design

Retains the structural integrity of the rotor

CNC Cross Drilled and Slotted

Precision-Rounded End Slots remove brake dust and expel gasses during hard braking.

Cross Drilled Holes improve ventilation and cooling for less brake fade and more positive stopping power.

Item Condition: New

Attention California Customers:

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Lifetime Warranty

This item is backed by our limited lifetime warranty. In the event this item should fail due to manufacturing defects during intended use, we will replace the part free of charge.

  1. step : Removing the Wheel (0:30)
    • Loosen the 19mm lug nuts with the vehicle on the ground
    • Raise the vehicle with a floor jack
    • Secure the vehicle on jack stands
    • Remove the lug nuts
    • Pull off the wheel
  2. step : Removing the Brake Pads and Rotor (1:00)
    • Remove 13mm bolts from the brake caliper
    • Pull the caliper aside
    • Pry the brake pads off with a flat blade screwdriver
    • Remove the 18mm bolts from the brake caliper bracket
    • Pull off the brake caliper bracket
    • Pull the rotor off
  3. step : Preparing the New Brake Pads and Caliper (3:05)
    • Remove the brake pad brackets
    • Remove the caliper boot slides
    • Clean the brake pad brackets with a wire brush
    • Clean the caliper bracket with a wire brush
    • Clean off the caliper boot sliders and inspect the boots
    • Apply grease to the caliper slides
    • Insert the slides into the caliper
    • Press on the brake pad brackets
    • Apply grease to the brake pad slides
  4. step : Installing the New Brake Rotor (9:20)
    • Slide the rotor on backwards
    • Clean the rotor with brake parts cleaner
    • Turn the rotor around
    • Clean the rotor with brake parts cleaner
    • Put the caliper bracket back into place
    • Start the bolts by hand
    • Tighten the bolts to 136 foot-pounds of torque
  5. step : Installing the New Brake Pads (11:12)
    • Apply grease to the brake pad tabs
    • Put an old pad in the caliper
    • Use a large C-clamp and the old pad to push the pistons back
    • Install the new brake pads into the bracket
    • Put the caliper on
    • Thread bolts by hand
    • Tighten bolts to 21-26 foot-pounds
    • Clean the rotor with brake parts cleaner or mineral spirits
  6. step : Reattaching the Wheel (14:02)
    • Slide the wheel into place
    • Start the lug nuts by hand
    • Tighten the lug nuts preliminarily
    • Lower the vehicle to the ground
    • Tighten the lug nuts to 83-112 foot-pounds in a crossing or star pattern
  7. step : Testing the Brakes (14:45)
    • Pump your brakes repeatedly until they feel firm
    • Test your brakes at 5 miles per hour and then 10 miles per hour
    • Road test the vehicle

Tools needed for replacement:

    Drills, Drill Bits & Related

  • Drill Bit Set

  • General Tools

  • Large C-Clamp
  • Jack Stands
  • Wire Brush
  • Floor Jack

  • Materials, Fluids, and Supplies

  • Block of Wood
  • Brake Parts Cleaner
  • Safety Glasses
  • Paper Towels
  • Bungee Cord
  • Anti-Seize Grease

  • Ratchets & Related

  • Torque Wrench
  • Ratchet
  • 1/2 Inch Breaker Bar

  • Screwdrivers & Related

  • Flat Blade Screwdriver

  • Sockets - Metric

  • 13mm Socket
  • 18mm Socket
  • 19mm Socket

There are no reviews for this item.
Customer Q&A
Ask a question to 1A Auto customers who purchased the product
Brake Pad Millage warranty?
Jhony R February 20, 2016
The warranty on brake pads are not a mileage related. They are from manufacturer defects. i.e. pad separating from backing. All pads do wear and can vary in driving style, city or highway....so on. Normal wear and tear is not covered in the warranty.
Brian F February 22, 2016

Fits the following Makes:

Year Make Model Description
2004Ford F150 Heritage Truck Ford F150 Heritage Truck 4 Wheel Drive with 5 Lug Wheels Front & Rear Semi-Metallic Performance Brake Kit
1997-2003Ford F150 Truck Ford F150 Truck 4 Wheel Drive with 5 Lug Wheels Front & Rear Semi-Metallic Performance Brake Kit

Part Interchange

Brand Label Part Number
Aimco 54042
Aimco 54047
Aimco 54090
Bendix PRT5299
Bendix PRT5140
Bendix PRT5146
DuraGo BR54090
DuraGo BR54042
Raybestos EHT679H
Raybestos Brakes EHT679H
Raybestos Brakes 66630
Raybestos Brakes 66947
Raybestos Brakes 66670
Wagner BD125752
Wagner BD125512

This item may be interchangeable with parts from other brands with the above part numbers. This information is provided only for reference and does not guarantee that the item you are purchasing is identical to parts with part numbers from the brands listed above. To confirm that this item fits your vehicle, use the above "Check Vehicle Fit" option.
