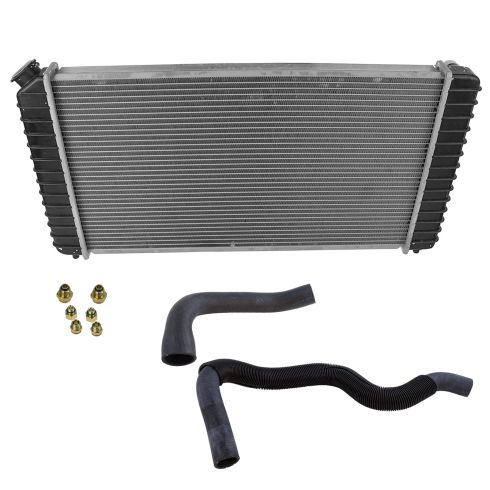

1AHCK00034-Chevrolet GMC Olds Isuzu Radiator 3 Piece Set


Chevrolet GMC Olds Isuzu Radiator 3 Piece Set DIY Solutions HVA01110


Part Details

  • Includes: Upper and Lower Hoses
  • Quantity: 3 Piece Set

This part replaces:

  • Spectra Premium Industries CU1826
  • Gates 22196
  • Partslink GM3010227
  • Gates 22039
  • TYC 1826
Save 20%
List: $198.95 Save: $39.00
Part 1AHCK00034
In Stock

Orders must be placed by 2pm ET
Delivery options for:

Estimated Arrival Cost

Deliveries made to PO Boxes and FPO may take longer. See our Shipping & Delivery for more information.

DIY Solutions
Brand #: HVA01110

Frequently bought together

Vehicle Fit
Warranty & Shipping
How-To & Tools

Part Details

  • Includes:   Upper and Lower Hoses
  • Quantity:   3 Piece Set


  • Direct replacement
  • Plastic tanks with aluminum core
  • Dimensions:
    • Height: 15"
    • Width: 26 1/4"
    • Thickness: 1 5/16"
  • Built to strict quality control standards

Complete Repair in One Purchase - Stop searching for parts individually and complete your repair with a single purchase of a customized kit or set from DIY Solutions.

High-Quality Parts from Trusted Brands - DIY Solutions' kits and sets are selected from the best automotive brands and include hard-to-find and even obsolete parts you may need for your vehicle.

Guaranteed Fit - DIY Solutions ensures its selected parts are quality-tested to guarantee fit and function.

Direct Fit Replacement

Core thickness equal to the OE part.   If radiator core is slightly thinner than the OEM, this can decrease overall performance and lifespan.

Premium Aluminum Core
  • Engineered for top performance.
  • Provides efficient cooling and heat-transfer.
100% Leak Tested - Built to strict quality control standards.

Item Condition: New

Attention California Customers:

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Lifetime Warranty

This item is backed by our limited lifetime warranty. In the event this item should fail due to manufacturing defects during intended use, we will replace the part free of charge. This warranty covers the cost of the part only.

  1. step : Disconnect the battery (1:45)
    • Use an 8 mm wrench to disconnect the negative battery terminal
  2. step : Remove the fan shroud (2:00)
    • Remove the seven 10 mm bolts using a socket, ratchet and extension.
    • Pull the shroud up and out.
  3. step : Install the new radiator (3:00)
    • Double check that everything connects the same way before installation.
    • Drain the radiator by placing a drain pain under the radiator drain.
    • Remove the skid plate by remove the six 15 mm bolts, remove them with a socket and ratchet.
    • Release the petcock to drain the radiator fluid.
    • Disconnect the radiator hoses and the oil cooler and transmission cooler lines.
    • Use an adjustable wrench and 19 mm socket and ratchet to do this.
  4. step : Install the new radiator (7:35)
    • Put the radiator into place
    • Connect all the lines and hoses
    • Do all this with your adjustable wrench and 19 mm socket and ratchet.
    • Fill with radiator fluid.
    • Turn the truck on and run it to check for leaks.
  5. step : Install the fan shroud and skid plate (10:30)
    • Bolt in the seven 10 mm bolts and six 15 mm bolts with your sockets, ratchet and extensions.

Tools needed for replacement:

    General Tools

  • Drain Pan

  • Pliers, Cutters & misc Wrenches

  • Needle nose pliers
  • Adjustable Wrench

  • Ratchets & Related

  • Socket Extensions
  • Ratchet

  • Screwdrivers & Related

  • Flat Blade Screwdriver

  • Sockets - Metric

  • 10mm Socket
  • 15mm Socket

  • Wrenches - Metric

  • 8mm Wrench

Fits the following Makes:

Year Make Model Description
1996-2004Chevrolet Blazer Chevrolet Blazer with Engine Oil Cooler Radiator 3 Piece Set
1996-2004Chevrolet S10 Pickup Chevrolet S10 Pickup V6 4.3L with Engine Oil Cooler Radiator 3 Piece Set
1996-2001GMC Jimmy GMC Jimmy with Engine Oil Cooler Radiator 3 Piece Set
1996-2004GMC S-15 Sonoma GMC S-15 Sonoma V6 4.3L with Engine Oil Cooler Radiator 3 Piece Set
1997-2000Isuzu Hombre Isuzu Hombre V6 4.3L with Engine Oil Cooler Radiator 3 Piece Set
1996-2001Oldsmobile Bravada Olds Bravada with Engine Oil Cooler Radiator 3 Piece Set

Part Interchange

Brand Label Part Number
Chevrolet 15120548
DIY Solutions HVA01110
DIY Solutions HVA01579
DIY Solutions HVA02574
DIY Solutions HVA02618
GMC 15120548
GMC 52472964
Oldsmobile 15120548
Partslink GM3010227
Spectra Premium CU1826

This item may be interchangeable with parts from other brands with the above part numbers. This information is provided only for reference and does not guarantee that the item you are purchasing is identical to parts with part numbers from the brands listed above. To confirm that this item fits your vehicle, use the above "Check Vehicle Fit" option.
