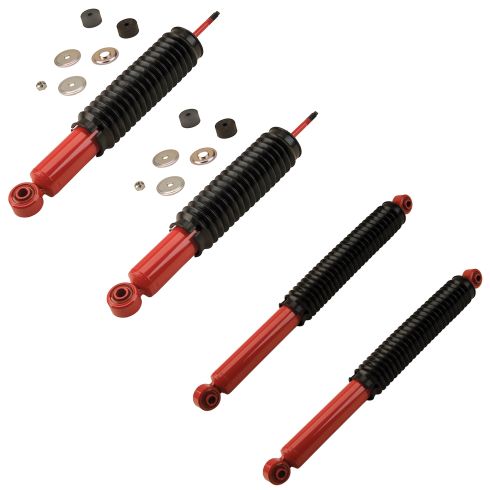

Kit Includes: (2) Rear Shock Absorbers (2) Front Shock Absorbers
Specification
Location
Front & Rear
Why Buy KYB MonoMax?
KYB MonoMax shocks and struts are an upgrade from your vehicle’s Original Equipment (OE). They are perfect for trucks that see off-road or towing use. Some of their perks include:
Dust boot for off-road use
Tough zinc-coated steel piston
More responisive
Automatically adjusts to changing conditions
Firmer for heavy towing
No shock fade from aeration
Item Condition:New
Lifetime Warranty
This item is backed by our limited lifetime warranty. In the event this item should fail due to manufacturing defects during intended use, we will replace the part free of charge. This warranty covers the cost of the part only.
FREE Shipping is standard on orders shipped to the lower 48 States (Contiguous United States). Standard shipping charges apply to Hawaii and Alaska.
Shipping is not available to a P.O. Box, APO/FPO/DPO addresses, US Territories, or Canada for this item.
Expedited is available on checkout to the United States, excluding Alaska, Hawaii.
Final shipping costs are available at checkout.
How To Replace Front Shocks 2001-10 GMC Sierra 2500 HD Truck
Created on:
Tools used
Adjustable Wrench
21mm Socket
15mm Wrench
Torque Wrench
16mm Wrench
17mm Wrench
18mm Wrench
19mm Wrench
Ratchet
1/2 Inch Breaker Bar
22mm Socket
1. Remove the wheel
Loosen the lug nuts.
Raise and secure the vehicle.
Remove the lug nuts and the wheel.
2. Remove the shocks.
Jack up the control arm to alleviate tension from the shock.
Apply penetrating oil to the bolts on the shock.
Unbolt the top of the shocks by securing the shock with an adjustable wrench and using a 15 mm wrench to remove the nut.
Remove the 15mm nuts on the bottom of the shock.
Use an adjustable wrench to secure the bolt and a breaker bar to break it loose.
3. Install the new shocks.
Take the new shock and put the cushion and washers onto the end and put the shock into place.
Thread on the 15 mm nuts and torque them to 75 or 80 ft lbs.
Put the wheel back on and hand tighten the lug nuts.
Lower the vehicle and torque the lug nuts to 110-120 ft lbs in a star pattern.
Brought to you by www.1AAuto.com, your source for quality replacement parts and the best service on the Internet. Hi, I'm mike from 1A Auto. I hope this how-to video helps you out. The next time you need parts for your vehicle, think of 1AAuto.com. Thanks.
In this video, we're going to show you how to replace the front shocks on this 2002 GMC Sierra, pretty much the same as any 2000, 2006 Sierra or Silverado. Tools you'll need for the job are: Jack and jack stands. 21 and 22 mm sockets with a ratchet and a breaker bar. You will also need an additional 21 mm socket with the bar or a 21 mm wrench. A torque wrench. 15-19 mm wrenches or adjustable wrenches work as well.
Start out by just removing the caps on this vehicle. You just loosen the top of the cap and then the whole center cap comes off. Next, if you don't have the benefit of air tools, loosen the lug nuts while your truck is on the ground, then raise and support the vehicle. Remove the lug nuts and remove the wheel and tire. So, with the vehicle back down and tire off and it's supported, you support it with a jack stand and put your jack underneath the wheel on the control arm. Then use some penetrating oil right up there on the nut at the top, and then also some down here on that nut.
I've got my 15 mm wrench on there and I'm not even going to mess around with these things. You're supposed to put a wrench on here, but I'm just going to go straight to a set of locking pliers. I'm going to get them on there as tight as I can. A lot of time, it will pop and you'll start moving this bolt and then it will get to more and more and more rust. Then, you'll end up having to cut it off, but it looks like it might be coming off pretty clean. In fact, that nut does come off. I'm going to fast forward here. There is also, if you have another wrench, underneath the support where the shock goes in there is a nut on the shock, itself that you can hold with a wrench.
All right, you take your wrench. Sometimes you can get pretty lucky with these. All right, the other side goes through. The other side is starting to spin, so I'm putting a socket on there. Like I said, it's starting to spin, so you can see I have a socket with my breaker bar on there. It just kind of holds itself in place as I remove the nut. To get it loose, I have to use my breaker bar, give the bolt a tap. It's rolling out and I can pull the shock down. Now, we've got our new shocks. Take out the cushions and washers and the nut. Okay, put the washer on. I have a large. The smaller hole goes up. Have this cushion with the smaller hole down and the washer on top and our shock up in place and down on. Then, we'll start our bolt in place. We're going to let down our suspension a little bit more with the shock in. That's as far as it goes and I'll let it down just a hair more. Pull through and the nut on the other side. Okay. I'm going to jack this a smidgen back up some. I'm going to hold to the backside of my bolt.
I'm going to fast-forward as I tighten up the bottom bolt. The torque specification is probably 75 to 80 foot pounds, but as long as you get them good and tight with large wrenches, you'll be okay. Okay, I'm going to continue fast forwarding as I just tightened up that top nut. You'll see I hold the top of the stud with a wrench and then tighten up with a wrench. Also, if you look down further where the yellow begins, that's also a nut that you could hold onto with a wrench. Then, once you're there, then put your tire back on. Start the lug nuts by hand first, then tighten them up preliminarily. Then, lower the vehicle onto the ground. Tighten the lug nuts to anywhere between 110 to 120 foot pounds and then put your cap back on. Obviously, always replace shocks in pairs, so do the other side and you'll be good to go down the road nice and smooth.
We hope this helps you out. Brought to you by www.1AAuto.com, your source for quality replacement parts and the best service on the Internet. Please feel free to call us toll-free 888-844-3393. We're the company that serves you on the Internet and in person.
