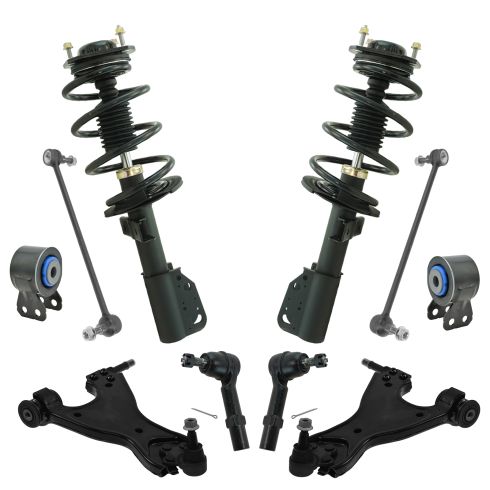

Chevrolet GMC Buick Front 10 Piece Steering & Suspension Kit TRQ PSA69963

I'm gonna remove the wheel. Use a 22-millimeter socket, and pull the wheel off. I'm just gonna use a little rust penetrant. There's a little bit of rust on the stud. Take an 18-millimeter wrench, and you can loosen up the nut. And the stud is gonna spin, so you want to use an 8-millimeter socket. Put it on the stud.

You could try to loosen this up with an impact, but the stud is just gonna spin. And take the nut off. Now you can take the stud out, just like that. You can take this nut off the same way you took the other one off, if you use a 18-millimeter wrench and a 8-millimeter socket, or you can take some locking pliers, get on the back side, and use an 18-millimeter socket. Try to get it off that way. Sometimes it works, sometimes it doesn't.

Now take the new link, slide it back in position. Put the nut on. And for the stud on this new link, we have a, there's actually a spot where you can put a wrench, so you can use an 18-millimeter wrench, 18-millimeter socket. I'm gonna snug this up first. And I'm gonna torque this nut to 55 foot-pounds. And slide the sway bar up. Slide the link stud through this bracket on the strut. Get the nut started, then use an 18-millimeter wrench, 18-millimeter socket. Tighten this up. And torque this nut to 59 foot-pounds. And put the tire on.

Now I'm gonna torque these lug nuts to 140 foot-pounds, in a cross pattern or a star pattern, to tighten the wheel down evenly. Now go around again. Just double check.

I'm gonna take a 22-millimeter socket and remove these lug nuts on the wheel. Now, I'm gonna remove the wheel. We're gonna take this nut off first. I'm using locking pliers behind just to hold the stud from spinning.

Now, what you could do is take an 18-millimeter wrench and then a socket on the end of this, and loosen it up that way. But this is a lot easier using the 18-millimeter socket. I might have to tighten this up a little more, and take that nut off. Now, that that's separated. I also separated the other side and that makes it easier, so, it's a good idea to do them both in pairs.

And then you can slide this down, and then you can gain access to this nut. We'll do the same on this one. Use some locking pliers, hold the stud from spinning, 18-millimeter socket, it comes right off.

Take the new link and slide it up. You're going to slide the stud towards the middle of the vehicle, and put the nut on using an 18-millimeter wrench then a 18-millimeter socket. Torque this down first. Torque this nut to 55 foot-pounds.

Slide that into the bottom of the strut. Take the nut, put that on. Take an 18-millimeter wrench on the inside, 18-millimeter socket, tighten this up. And torque this to 59 foot-pounds.

All right. Now I'm gonna put the tire back on, and the put the lug nuts on. Now, you're gonna tighten the lug nuts to 140 foot-pounds in a cross pattern to tighten the wheel down evenly. I'll just go round again to double-check.

I'm going to remove the wheel, use a 22-millimeter socket. I'm going to pull the wheel off. I'm going to take this nut off, use a 24-millimeter socket. You're going to take these two bolts out and there's two nuts on top. Use an 18-millimeter wrench to hold the nuts and then an 18-millimeter socket for the bottom. Take those out. To get these trim clips off, choose the trim clip tool. Now, you can use a pry bar, just pry on the control arm a little bit, try to slide this out. And take a hammer and just give it a tap and pry it off. Just like that. Take the new bushing. There is a ring right here, this steel ring that goes towards the back of the vehicle. This happens to have a blue collar right here. The white one, this goes towards the front of the vehicle, and just slide this in position. There you go.

Now, it's lined up. I'll just give it a tap on them. Make sure you use a rubber hammer or a dead blow. Get that to line up. That's good. I'll get that nut started and take these bolts. Get these bolts started and then put the nuts on top. Now, I'll snug these up first, and then use a torque wrench and torque these to 55-foot pounds. Then, I'm going to use a screw jack and raise up the lower control arm. You want this as close to ride height as possible. Ideally, you would want to put the tire on, lower the vehicle down to ride height, and then torque this, but it's not easy to get a torque wrench underneath the vehicle. So do the best you can. And then, torque this nut to 140-foot pounds. And then lower the control arm down. I'm gonna put the tire on. Now, I'm going to torque these lug nuts to 140-foot pounds in a cross pattern or a star pattern to tighten the wheel down evenly.

Now, go around again just to double-check.

Now, you can take the lug nuts off. Use the 22-millimeter socket, so you can get the wheel off. Grab the wheel, slide it off. I'm gonna loosen up the jam nut. Just take a 15/16 wrench and loosen it up. That's good. I'm just gonna take a little rust penetrant, just spray down the tie rod stud. That'll make it a little easier to take that nut off. I'm just gonna take a pry bar, and just pry below the strut, and prying down on the tie rod to help the stud from spinning. And then use a 21-millimeter socket, take that nut off. Now, just take a hammer and hit on the bottom of the stud, going up. When you take this off, you're gonna want to count the threads, so, 1, 2, 3...17, 17, and just write that number down somewhere.

That's gonna make it easier for when you put it back together to get it close so that when you go to have the alignment done, it's actually a little bit closer than if you didn't count the threads. Now, take the outer tie rod end and count the threads when you go on. 1, 2...17. And I'll just move the jam nut a little closer and take the stud and line it up with the nut hole.

Take the nut, put the nut on. Now I'll take a pry bar, go under the strut, slide this down. And then I'm gonna torque this nut to 22 foot-pounds. And if you have angle meter, you're gonna want to torque this an additional 120 degrees. If you don't, just do the best you can. That's 90, then I'll go another 30 degrees. I'm just estimating; that's about right. And we can tighten up the jam nut. If you have the ability to torque this, you can torque it to 55 foot-pounds. Now, put the wheel back on.

Now I'm gonna tighten the lug nuts down, torque them to 140 foot-pounds in a cross pattern so that it tightens the wheel down evenly. Go around again. Double check.

I'm gonna remove the wheel, use a 22 millimeter socket. I'm gonna pull the wheel off. I'm gonna take this ball joint nut off. You can use a 21 millimeter wrench to loosen it up. And take that off. I'm gonna use a pickle fork to disconnect the ball joint from the knuckle. There's different types of tools that you can use. There we go. It's separated. I'm gonna take these two bolts out. There is nuts on the top. Use an 18 millimeter wrench, those on the nuts. And then use an 18 millimeter socket to take the bolts out.

Now to remove this bolt and nut, we're gonna have to loosen up the link for the sway bar. The sway bar is in the way right now, if we were to pull that bolt out. You can try to slide that out, but most likely it's gonna be in your way, so we have to take the link off on this side and on the opposite side. I'm just gonna use a little rust penetrant. There's a little bit of rust on the stud. Take an 18 millimeter wrench and we can loosen up the nut. And this stud is gonna spin, so you wanna use an 8 millimeter socket, put it on the stud. You could try to loosen this up with an impact. But the stud is just gonna spin.

And take the nut off. Now you can take the stud out, just like that. With both of those links disconnected, then you can slide the whole sway bar up, and then you can access that bolt. And you can use a 21 millimeter socket and a 21 millimeter wrench on the nut. And loosen this up. You can slide the bolt up. Now just take a pry bar and just pry this out. There you go. Now take a 24 millimeter socket to take this nut off.

Then you can slide this bushing off. Now, you're gonna take that protector off and slide this bushing on. Now where this ring is, that goes towards the inside of the bushing. On this bushing it happens to have this blue area right here, the outside is white. Take the nut and just snug this up a little bit. We're gonna torque it later. And loosen it up a little. We want this to be able to move. I'm gonna take the new control arm and then just slide it in position. Take the ball joint, slide it into the knuckle. You can take the nut. Get that started. Now, get this bolt lined up, and put the nut on. Now, I'm gonna take these two bolts. Slide those through. Put the nut on top. Now, I'm gonna snug these down first. Use an 18 millimeter wrench up top, 18 millimeter socket down below.

Now, I'm gonna tighten these bolts to 55 foot pounds. Now, I'm gonna put a screw jack underneath the control arm and safely support the control arm. You wanna get the control arm as close to ride height as possible. It would be ideal if you could put the tire back on, put the vehicle down and then torque the nut here and torque the bolt here, but it's not that easy to get a torque wrench under there. So do the best you can to get this close. Then you can use a 13/16 wrench or a 21 millimeter wrench, 21 millimeter socket on the bolt and torque this to 111 foot pounds.

I'm gonna torque this nut to 144 foot pounds. Now we can use our wrench while this lower control arm is still supported, and tighten this nut up. And then once you get it tight, if you have the ability to put a torque wrench on there, you can torque that bolt, that nut to 30 foot pounds and then an additional 90 degrees. Now, I can lower this down, and slide that up, the sway bar up. Slide the link stud through this bracket on the strut, get the nut started and use an 18 millimeter wrench, 18 millimeter socket to tighten this up. And torque this nut to 59 foot pounds. I'm gonna put the tire on.

Now, I'm gonna torque these lug nuts to 140 foot pounds in a cross pattern or a star pattern to tighten the wheel down evenly.

Now I'll go around again just to double check. Now when you've done this job, you're gonna need to bring the vehicle to a shop to have it aligned, otherwise you're gonna have premature tire wear.
