Replaces
Part Details
Product Features
Assemblies may include halogen or incandescent test bulbs that should be replaced before installation.
Attention California Customers:
WARNING: This product can expose you to chemicals including Chromium (Hexavalent Compounds), which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
Lifetime Warranty
This item is backed by our limited lifetime warranty. In the event that this item should fail due to manufacturing defects during intended use, we will replace the part free of charge. This warranty covers the cost of the part only.
FREE Shipping is standard on orders shipped to the lower 48 States (Contiguous United States). Standard shipping charges apply to Hawaii and Alaska.
Shipping is not available to a P.O. Box, APO/FPO/DPO addresses, US Territories, or Canada for this item.
Expedited is available on checkout to the United States, excluding Alaska, Hawaii.
Final shipping costs are available at checkout.
Created on:
Tools used
Brought to you by 1AAuto.com, your source for quality replacement parts and the best service on the Internet.
Hi, I'm Mike Green. I'm one of the owners of 1A Auto. I want to help you save time and money repairing or maintaining your vehicle. I'm going to use my 20-plus years experience restoring and repairing cars and trucks like this to show you the correct way to install parts from 1AAuto.com. The right parts installed correctly: that's going to save you time and money. Thank you and enjoy the video.
In this video, we're going to show you how to change the bulb, as well as change the whole parking and marker light assembly on this 2000 S10 Blazer, same as the pickup.
Removing the headlights is pretty easy. There's actually two tabs right here that you pull up and off. Be careful not to drop them. Once those tabs are removed you pull the headlight forward and you disconnect or remove the headlight bulbs. You can remove them by twisting or you can disconnect the harnesses and there's also a side marker light that you would twist out.
Now with the light out of the way, you can see there's actually a bulb right here. There's a tab that you need to press right here with your finger and then twist this and you can pull the bulb out to replace it. Then you pull it from the socket here.
If you're looking to replace this whole assembly there's, I believe, a tab right back here and then a tab right here. I'm going to take and squeeze those tabs. Push it forward and then it comes out.

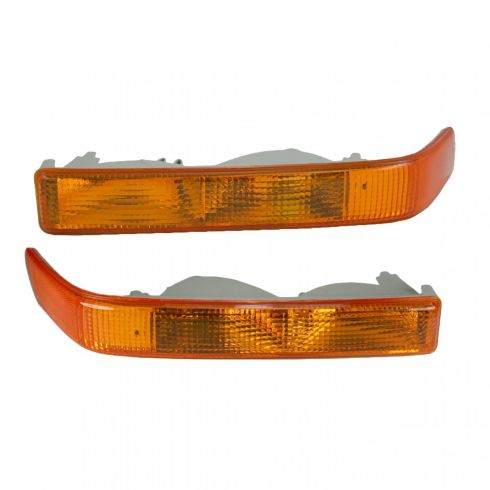

Now if you broke your parking light, here's my original and a new one from 1A Auto. You can see it's all the same. It's going to mount in there the same. To install, I'm going to put my bulb back into my socket, here. On the back of the light there are all kinds of different tabs and they line up with different slots in the grill. Put it back in. Make sure the tabs come through. Then, insert your bulb back here. Get it into the right place here and lock it in place. Now reinstall your headlight. It's a nice new one from 1A Auto to go with your new parking light. Connect everything and then the biggest thing to realize is there are two tabs here. They go down into slots here, so you want to plug in your high beam, and I did replace the headlights into the assembly here. Then make sure that the harnesses aren't interfering with those tabs. Push your light back in and lift up the back a little bit. You can look through, and lift up the back. Make sure it's going in there correctly. Push it on top, push it back in and then put your clips back on.
We hope this video helps you out. Brought to you by www.1AAuto.com, your source for quality replacement parts and the best service on the Internet. Please feel free to call us toll-free, 888-844-3393. We're the company that's here for you on the Internet and in person.
