Assemblies may include halogen or incandescent test bulbs that should be replaced before installation.
Attention California Customers:
WARNING: This product can expose you to chemicals including Chromium (Hexavalent Compounds), which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
Lifetime Warranty
This item is backed by our limited lifetime warranty. In the event that this item should fail due to manufacturing defects during intended use, we will replace the part free of charge. This warranty covers the cost of the part only.
FREE Shipping is standard on orders shipped to the lower 48 States (Contiguous United States). Standard shipping charges apply to Hawaii and Alaska.
Shipping is not available to a P.O. Box, APO/FPO/DPO addresses, US Territories, or Canada for this item.
Expedited is available on checkout to the United States, excluding Alaska, Hawaii.
Final shipping costs are available at checkout.
Created on:
Tools used
Brought to you by 1AAuto.com, your source for quality replacement parts and the best service on the Internet.
Hi, I'm Mike from 1A Auto. I hope this How To video helps you out, and next time you need parts for your vehicle, think of 1AAuto.com. Thanks.

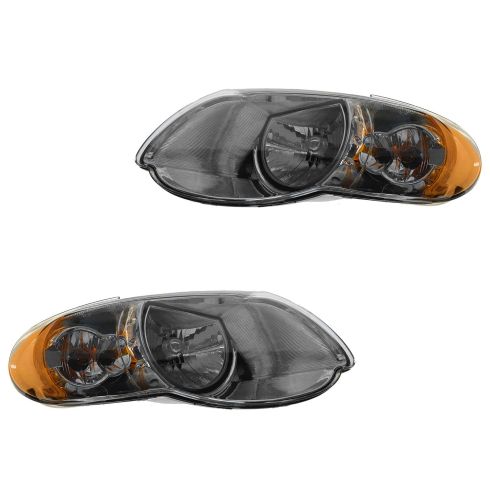

In this video we're going to show you how to service the headlights on this 2005 Chrysler Town and Country, we'll show you both changing the bulbs as well as changing the whole assembly, if you have a broken, coded or faded one. The only tool you'll need is an 8mm wrench or socket and ratchet.
Here you can see the front end of our '05 Town and Country. You see the lights are kind of clouded, a little faded, new set of headlights from 1A Auto, there you go, nice and clear, help you see better at night. Let's just see that one more time. There's before, cloudy, faded, and after - a nice new set of headlights from 1AAuto.com.
Start with the 8mm socket, or a wrench would work just fine. There's three bolts right up here on top. Once you remove those three bolts, your light just slides right forward like that. In the back here, there's little red safety tabs, you just pull them back and then you press on a tab, for this one it's right here. Press and release, and if you just want to change your bulbs, they just turn counterclockwise and come out. Same thing here. Pull this tab, press, release, this bulb comes out. Here, there's a little pin that holds the wiring harness. Just pull that off, your light comes off.

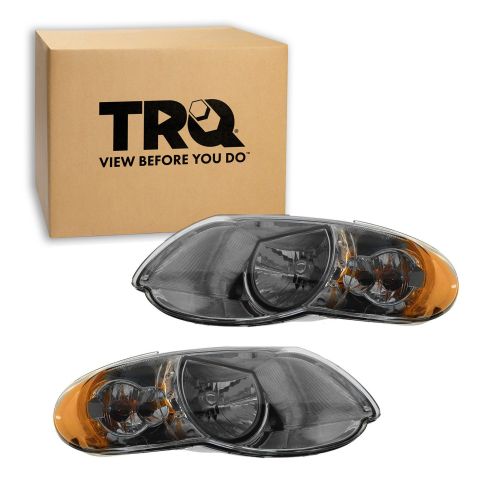

Here's your new light from 1A Auto, nice and clear. We're just going to take our harness and push it back into the hole here, then reconnect there and reconnect there. It just slides right back into place. Start our three bolts in, we have to use this tab right here, lift up a little bit, start the bolts. Tighten them up. Okay, we'll just fast forward a little bit here, as I just tighten up those bolts, tighten them up firm, you don't need to over tighten them though. If you should need to adjust the aim of the light, there's a Phillips screw right down there, and that is your adjustment screw.
