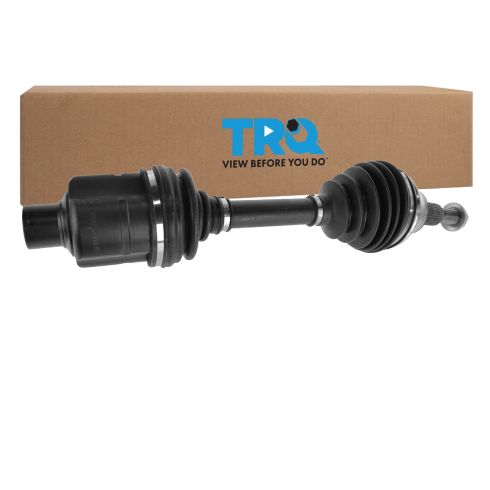

TRQ CV (constant velocity) drive axles are manufactured using premium raw materials designed to restore original performance. TRQ CV drive axles are new, so there is no core charge with your TRQ purchase. TRQ-designed drive axles utilize neoprene boots, moly grease, stainless steel clamps, and heat-treated ball tracks to ensure extended service life. Each TRQ axle is application-specific so each spline and thread will mate properly for a seamless fit. All products are fit and road-tested in our Massachusetts R&D facility to ensure we deliver on our promise of Trusted Reliable Quality.
Product Features
100% New: Manufactured to tighter tolerances for extended service life
Neoprene Boots: Improved durability compared to stock material
Moly Greased: Specifically-designed grease shield to reduce premature wear
Application Specific Design: No modification
CV axles are designed to transmit the power from your vehicle's drivetrain to the wheels while being able to flex and pivot to the demands of the steering and suspension systems. If your vehicle is making clicking noises at lower speeds or when making turns, it may be time to replace your CV axles with our 100% brand new assemblies.
Note: You will need to reuse your original inner stub shaft with this new replacement CV axle. The splined shaft on the inner joint from your original assembly can be removed and installed onto the new CV assembly.
Item Condition:New
Attention California Customers:
WARNING: This product can expose you to chemicals including Lead and Lead Compounds, which are known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
Lifetime Warranty
This item is backed by our limited lifetime warranty. In the event that this item should fail due to manufacturing defects during intended use, we will replace the part free of charge. This warranty covers the cost of the part only.
FREE Shipping is standard on orders shipped to the lower 48 States (Contiguous United States). Standard shipping charges apply to Hawaii and Alaska.
Shipping is not available to a P.O. Box, APO/FPO/DPO addresses, US Territories, or Canada for this item.
Expedited is available on checkout to the United States, excluding Alaska, Hawaii.
Final shipping costs are available at checkout.
How to Replace CV Axle Shaft 2002-05 Dodge Ram 1500
How to Replace Front CV Axle 2002-2008 Dodge Ram 1500
Created on:
Tools used
35mm Socket
Lug Wrench
Ratchet
1/2 Inch Breaker Bar
22mm Socket
1. Remove the wheel
Loosen the lug nuts and the hub nut.
Raise and secure the vehicle.
Remove the lug nuts and set the wheel aside.
2. Remove the front CV Axle
Remove the hub nut.
Tap the axle with a hammer to break it free from the hub.
Use a pry bar to pull the axle from the transmission.
Pull the axle out.
Sometimes this step takes a bit of finesse.
3. Install the new axle.
Position the new axle into the hub.
Put the hub nut back on.
Now that you have some leverage, push the other end of the CV axle into the transmission.
4. Put the wheel back on
Put the lug nuts back on.
Torque the hub nut to 185 foot lbs.
In a star pattern, torque the lug nuts to 120 ft lbs.
Brought to you by 1AAuto.com, your source for quality replacement parts and the best service on the Internet. Hi. I'm Mike Green; I'm one of the owners of 1A Auto. I want to help you save time and money repairing and maintaining your vehicle. I'm going to use my 20 plus years experience restoring and repairing cars and trucks like this, to show you the correct way to install parts from 1AAuto.com. The right parts installed correctly. That's going to save you time and money. Thank you, and enjoy the video.
In this video, we're going to show you how to replace the front drive axle on this '04 Dodge Ram, same as most of these '02 to '08 generation vehicles. Pretty easy, you need a 22 millimeter or 7/8 socket and lug wrench or, I'm sorry, a lug wrench or a socket and ratchet. You'll also need a 35 millimeter socket with an air impact wrench or a large breaker bar and pipe. First, you want to remove your wheel, if you're just using hand tools start with the vehicle on the ground, loosen lug nuts first, then raise it, secure it with jack stands and then remove the wheel. I've got air tools; I'm going to use them. These are either 7/8 or 22 millimeter. Both will work. So you'll notice here that the brakes are apart. You do not have to take the breaks apart. I was just filming this while I was doing a few different repairs. This only involves lifting up the truck, taking the wheel off and then removing and replacing the axle. You'll also notice that I don't actually replace the axle with a new one, because it wasn't bad on this vehicle, I was just doing the video so you can see how it's done. I'm going to take the hub nut off, and I've got a 35-millimeter impact wrench and socket. I've your using hand tools, you're going to have to lift up, take the lug nuts off, take the center cap off, put the wheel back on, and the lug nuts back on, then use your breaker bar and pipe. A little more difficult, a little more involved, but that's how you do it. I'll just get to it and use my impact wrench here. Okay, I hit it and it moved so it's free.
Now, what you want to do is get a pry bar and then go way up like that, and pull your axle right off like that. Hammer, and your axle is out. So now we're just going to take our axle, put it right up around here, feed it into the hub, turn it a little bit so we know we're matching it with the hub. Push it right in. I'm going to take my hub nut and using my impact wrench, just to get it on there, not really to tighten it all the way up yet. Now, I'm going to grab hold of my CV joint on the inside, pull it. So you go up on the top, pull your joint in as much as you can. Get it going onto the axle, and then push all the way on. Make sure it gets on there. So you're axle is back in. Put your wheel back up on and put the lug nuts on there without the center cap. Just put them on by hand first, and then I'm just going to tighten them up a little bit with my impact wrench, preliminarily. So your hub nut 185 foot pounds, my poor torque wrench only goes up to 150. So there's 150, 185. Now, I'll raise the vehicle back up, take the lug nuts off, put the center cap back on, and preliminarily tighten up the lug nuts. Let the vehicle back down and torque the lug nuts to 120 foot-pounds, using a star pattern.
We hope this helps you out. Brought to you by www.1AAuto.com, your source for quality replacement parts and the best service on the Internet. Please feel free to call us toll free 888-844-3393. We're the company that's here for you on the Internet and in person.
Tools used
35mm Socket
Torque Wrench
Hammer
Socket Extensions
Pry Bar
Jack Stands
10mm Wrench
Block of Wood
Trim Tool Set
Safety Glasses
21mm Socket
21mm wrench
Gloves
Socket Driver
7/8 Inch Socket
Ratchet
Floor Jack
1/2 Inch Impact Gun
CSA82138
In Stock
Product Reviews
Loading reviews
2.00/ 5.01
1review
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
0
0
0
1
0
Not sure yet
Rocque
October 14, 2022
Seems to be have a shake. not sure if CV is balance issue or ? Are these balanced at factory ?
The install was fine. Got it out and in while I was installing new upper control arms and ball joints along with new lower ball joints on front.
now on freeway there is a shake at times so have to figure it out.
Delivered fast, good customer service.
Customer Q&A
Do these axles come per greased?April 21, 2016
Matthew H
10
Yes, these will come with the boot completely on the axle. These will have grease in these boots.
April 21, 2016
Derek C
Does this axel fit driver side cause I know the passenger side is a little longer?June 10, 2016
John S
10
The 2 cv axles driver and passenger are the same. Its the intermediate axle shafts that are different
June 10, 2016
Brian F
10
The CV axle shafts on the 2002-2005 Dodge Ram 1500 are both the same length. So yes it will work on the drivers side. The front differential is offset, which might be what you are thinking of.
June 11, 2016
