1ASFK02614-2002-03 Toyota Camry Lexus ES300 Steering & Suspension Kit 12 Piece Set

Replaces

2002-03 Toyota Camry Lexus ES300 Steering & Suspension Kit 12 Piece Set DIY Solutions

1ASFK02614

Part Details

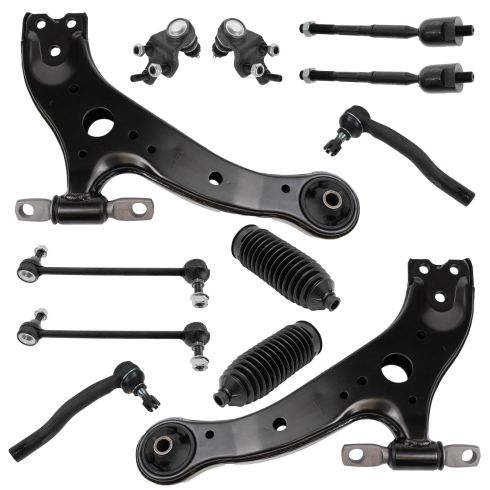

  • Kit Includes: (2) Front Lower Ball Joints
  • Kit Includes: (2) Front Lower Control Arms
  • Kit Includes: (2) Front Outer Tie Rods
  • Quantity: 12 Piece Set
  • Kit Includes: (2) Front Sway Bar Links
  • Kit Includes: (2) Steering Rack & Pinion Bellows
  • Kit Includes: (2) Front Inner Tie Rods

This part replaces:

  • Hollander 512-58629R
  • Hollander 512-58630L
  • Dorman 520-401
  • Dorman 520-402
  • Reference Number BT-433
  • Moog ES3600
  • Moog ES3601
  • Moog K150272
  • Beck Arnley 103-3069
  • Moog K620333
  • Moog K620334
  • Moog K90346
  • Moog K90347
  • Moog K90344
  • Moog EV420
  • Reference Number BT-743H
  • OE # 4334009080
  • OE # 4333029405
  • OE # 4806906070
  • OE # 4334029215
  • OE # 4334029175
  • OE # 53534SZAA02
  • OE # 4550309230
  • OE # 4333009560
  • OE # 4806806070
  • OE # 4882006040
  • OE # 4333009160
  • OE # 4882028050
  • OE # 4546009010
  • OE # 4334029615
  • OE # 4806833050
  • OE # 4550339225
  • OE # 4334009010
  • OE # 4547009010
  • OE # 4806933050
  • OE # 4553506030
  • OE # 4806906080
  • OE # 4333029615
  • OE # 4806806080
  • DIY Solutions SUS02288
FREE SAME DAY SHIPPING
Save 21%
List: $213.95 Save: $44.00
Part 1ASFK02614
In Stock


Orders must be placed by 2pm ET
Delivery options for:

Estimated Arrival Cost


Deliveries made to PO Boxes and FPO may take longer. See our Shipping & Delivery for more information.

DIY Solutions
Brand #: SUS02288

Frequently bought together

Description
Vehicle Fit
Warranty & Shipping
How-To & Tools
Q&A

Part Details

  • Quantity:   12 Piece Set
  • Kit Includes:
      (2) Front Lower Ball Joints
      (2) Front Lower Control Arms
      (2) Front Outer Tie Rods
      (2) Front Sway Bar Links
      (2) Steering Rack & Pinion Bellows
      (2) Front Inner Tie Rods

Specifications:

  • Comes as a 12 Piece Kit
    • Fits LH (Driver Side) & RH (Passenger Side) Front
  • Direct replacements
  • Built to strict quality control standards

Our steering and suspension components come pre-greased, sealed for long life, and do not require the extra maintenance typically required by greasable versions.

Your DIY Solution—Complete Repair in One Purchase

Do you need an assortment of parts to complete a repair? Stop searching for parts individually and complete your repair in a single purchase with a customized kit or set from DIY Solutions.

High-Quality Parts From Trusted Brands

Parts in DIY Solutions' kits and sets are selected from the best automotive brands and include hard-to-find and even obsolete parts you may need for your vehicle.

Guaranteed Fit

DIY Solutions ensures its selected parts are quality-tested to guarantee fit and function.

Direct Fit

Application-specific, with no modifications required.

Rigorously Tested

Made from higher quality materials than the competition. Built to have a longer life in any environment or road conditions.

State of the Art Manufacturing

By the same factories that the OEMs use.

Prepackaged for Your Convenience

Carefully assembled to include all of the parts you need, saving time and money.

Item Condition: New

Attention California Customers:

WARNING:  This product can expose you to chemicals including Chromium (Hexavalent Compounds), which is known to the State of California to cause cancer, and birth defects or other reproductive harm.  For more information, go to www.P65Warnings.ca.gov.

Lifetime Warranty

This item is backed by our limited lifetime warranty. In the event this item should fail due to manufacturing defects during intended use, we will replace the part free of charge. This warranty covers the cost of the part only.

Note: When replacing steering components, it is recommended to have a professional alignment performed on the vehicle afterwards. This will ensure proper tracking and even tire wear.

  1. step : Removing the Wheel (0:24)
    • Pry off the hub cap with a pry bar
    • Loosen the lug nuts with the vehicle on the ground
    • Raise and support the vehicle
    • Remove the lug nuts
    • Pull the wheel off the hub
  2. step : Removing the Sway Bar Link (1:15)
    • Spray rust penetrant on the upper sway bar link nut
    • Clean the upper sway bar link nut with a wire brush
    • Hold the upper sway bar link nut with a 6mm hex socket and breaker bar
    • Loosen the nut with a 17mm wrench
    • If the nut is stuck, hold the sway bar link ball joint with locking pliers if necessary
    • Remove the 17mm nut
    • If the nut remains stuck, cut the sway bar link stud with a hack saw or reciprocating saw
    • Hold the lower sway bar link ball joint with locking pliers
    • Remove the 17mm bolt from the lower sway bar link stud
    • Remove the sway bar link from the vehicle
  3. step : Installing the Sway Bar Link (7:54)
    • Hang the sway bar link where it attaches to the strut
    • Slide the sway bar link stud into sway bar
    • Start the 18mm nuts onto the sway bar link studs by hand
    • Hold the sway bar link ball joints with an 18mm wrench
    • Tighten the nuts with an 18mm socket and ratchet
    • Torque the 18mm nuts to 55 foot-pounds
  4. step : Installing the Wheel (8:52)
    • Slide the wheel onto the hub
    • Start the lug nuts by hand, with the tapered side facing the wheel
    • Tighten the lug nuts preliminarily
    • Lower the vehicle to the ground
    • Torque the lug nuts to 76 foot-pounds in a star pattern
    • Line up the hub cap with the valve stem
    • Push the hub cap onto the wheel

Tools needed for replacement:

    General Tools

  • Jack Stands
  • Reciprocating Saw
  • Wire Brush
  • Floor Jack

  • Hex Wrenches

  • 6mm Allen Wrench

  • Materials, Fluids, and Supplies

  • Rust Penetrant
  • Brake Parts Cleaner

  • Pliers, Cutters & misc Wrenches

  • Vise Grip Pliers

  • Ratchets & Related

  • Socket Extensions
  • Torque Wrench
  • Ratchet
  • 1/2 Inch Breaker Bar

  • Screwdrivers & Related

  • Pry Bar

  • Sockets - Metric

  • 17mm Socket
  • 18mm Socket
  • 21mm Socket

  • Wrenches - Metric

  • 17mm Wrench
  • 18mm Wrench
  • 21mm wrench

Need help? Ask one of our Auto Experts
Need help? Ask one of our Auto Experts
Customer Q&A
Ask a question to 1A Auto customers who purchased the product
Will this fit 2003 v6 camry?
Trevor P July 28, 2018
This kit is listed to fit the 2003 Toyota Camry regardless of the engine size, yes.
Peter L July 28, 2018
Yes It Will Fit Your 2003 V6 Camry Perfectly, The Size Of Your Motor Will Not Affect This Product.
Luis N July 29, 2018
Does this kit include new clamps for the inner tie rod boots?
H N March 18, 2019
This kit will not come with clips for the inner tie rod boots.
Emma F March 19, 2019

Fits the following Makes:

Year Make Model Description
2002-2003Lexus ES300 Lexus ES300 Steering & Suspension Kit 12 Piece Set
2002-2003Toyota Camry Toyota Camry Steering & Suspension Kit 12 Piece Set

Part Interchange

Brand Label Part Number
ACDelco 45D3199
ACDelco 45D3198
Beck / Arnley 103-3069
Beck / Arnley 101-5030
Beck / Arnley 102-5922
Beck / Arnley 102-5029
Beck / Arnley 101-5029
Beck / Arnley 102-5030
Beck / Arnley 102-5921
Beck/Arnley 103-3069
Beck/Arnley 102-5922
Beck/Arnley 101-5029
Beck/Arnley 102-5029
Beck/Arnley 102-5921
Beck/Arnley 102-5030
Beck/Arnley 101-5030
CARQUEST CA162B
CARQUEST CA161B
Centric Parts 623.44804
Centric Parts 623.44805
DIY Solutions SUS02288
DIY Solutions SUS05585
DIY Solutions SUS07602
DIY Solutions SUS05584
DIY Solutions SUS06679
DIY Solutions SUS00290
DIY Solutions SUS07810
DIY Solutions SUS07204
DIY Solutions SUS07809
DIY Solutions SUS00291
Dorman 520-402
Dorman 520-401
Dorman - OE Solutions 520-401
Dorman - OE Solutions 520-402
Dorman OE Solutions 520-401
Dorman OE Solutions 520-402
Falcon Steering Systems FCA330
Falcon Steering Systems FCA331
Ingalls Engineering CAK620333
Ingalls Engineering CAK620334
MAS Industries CA74414PR
MAS Industries CB74204PR
MAS Industries CA74413PR
MAS Industries CA74414
MAS Industries CB74203
MAS Industries CB74204
MAS Industries CA74413
MAS Industries CA74503
MAS Industries CA74504
MAS Industries CB74203PR
MOOG RK620333
MOOG ES3600
MOOG RK641292
MOOG CK620334
MOOG RK621476
MOOG RK641487
MOOG K620333
MOOG RK620334
MOOG RK621477
MOOG RK641488
MOOG ES3601
MOOG K90344
MOOG CK620333
MOOG RK641291
MOOG K620334
MOOG K90347
MOOG EV420
MOOG K90346
MOOG K150272
MOOG RK642726
MOOG RK642725
MOOG Chassis Products ES3600
MOOG Chassis Products K90347
MOOG Chassis Products RK641292
MOOG Chassis Products CK620334
MOOG Chassis Products RK620333
MOOG Chassis Products K620333
MOOG Chassis Products K90346
MOOG Chassis Products RK641488
MOOG Chassis Products K150272
MOOG Chassis Products CK620333
MOOG Chassis Products ES3601
MOOG Chassis Products K620334
MOOG Chassis Products RK642725
MOOG Chassis Products RK621476
MOOG Chassis Products RK641291
MOOG Chassis Products RK641487
MOOG Chassis Products EV420
MOOG Chassis Products K90344
MOOG Chassis Products RK620334
MOOG Chassis Products RK642726
MOOG Chassis Products RK621477
Mcquay-Norris FA4269
Mcquay-Norris FA4270
Mevotech RMS20247
Mevotech MS86182
Mevotech GS86181
Mevotech CMS20246
Mevotech MS20246
Mevotech CMS20247
Mevotech MS86181
Mevotech CMS86181
Mevotech GS86182
Mevotech RMS20246
Mevotech GS20246
Mevotech MS20247
Mevotech GS20247
NAPA 260-5397
NAPA 260-5396
NAPA Premium 2605397
NAPA Premium 2606695
NAPA Premium 2606694
NAPA Premium 2606439
NAPA Premium 2606440
NAPA Premium 2605396
Precision Driveline 5CB86037
Precision Driveline CB86036
Precision Driveline 5CB86036
Precision Driveline CB86037
Precision Driveline CB86105
Precision Driveline CB86106
Raybestos Chassis 507-1198
Raybestos Chassis 507-1199
SYD 1525006
SYD 1525005
Toyota 4806906160
Toyota 4806933050
Toyota 4806806150
Toyota 4806906100
Toyota 4806933060
Toyota 4806906150
Toyota 4806833070
Toyota 4806833050
Toyota 4.8068E+15
Toyota 4806906080
Toyota 4806828120
Toyota 4806806080
Toyota 4806928120
Toyota 4806806160
Toyota 4.8069E+15
Toyota 4806806100
Toyota 4806933070
Toyota 4806906070
Toyota 4806806070
Toyota 4806833060
Toyota OEM 4806906150
Toyota OEM 4806933060
Toyota OEM 4.8068E+15
Toyota OEM 4806933050
Toyota OEM 4806828120
Toyota OEM 4806806100
Toyota OEM 4806906070
Toyota OEM 4806833060
Toyota OEM 4806806080
Toyota OEM 4806906080
Toyota OEM 4806806150
Toyota OEM 4.8069E+15
Toyota OEM 4806833070
Toyota OEM 4806906160
Toyota OEM 4806906100
Toyota OEM 4806933070
Toyota OEM 4806928120
Toyota OEM 4806806070
Toyota OEM 4806833050
Toyota OEM 4806806160

This item may be interchangeable with parts from other brands with the above part numbers. This information is provided only for reference and does not guarantee that the item you are purchasing is identical to parts with part numbers from the brands listed above. To confirm that this item fits your vehicle, use the above "Check Vehicle Fit" option.
