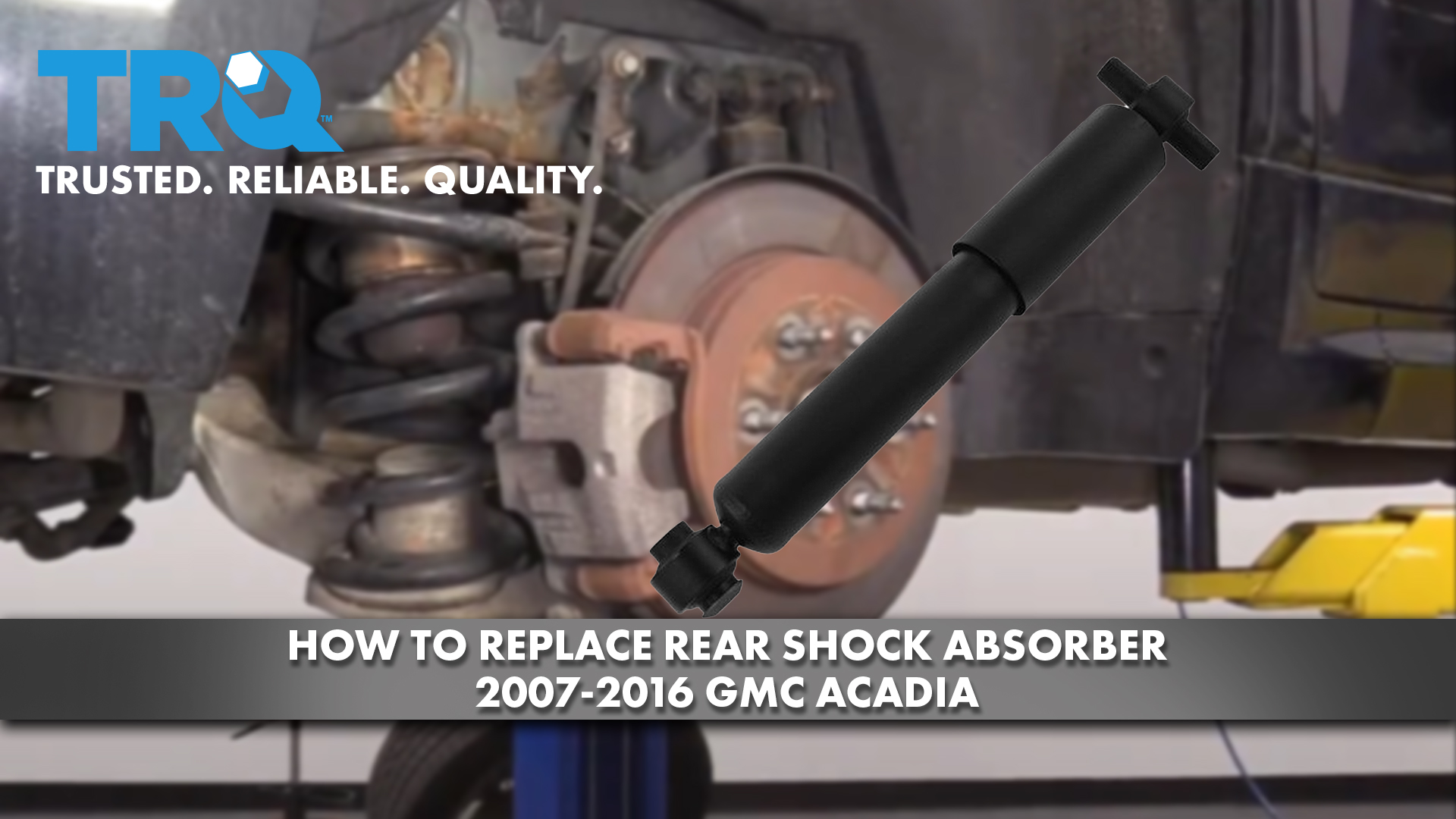

How To Replace Rear Shock 2007-16 GMC Acadia

Created on: 2020-07-27

This video shows you how to install a new rear TRQ shock absorber on your 2007-16 GMC Acadia.

Tools needed

  • 21mm Socket

    Torque Wrench

    15mm Socket

    13/16 Inch Wrench

    18mm Wrench

    Air Compressor



    Floor Jack

    1/2 Inch Air Impact Gun

    22mm Socket

Remove the wheel, I'm gonna use a 22-millimeter socket. Take the wheel off. So I want to support the lower control arm. I am going to use a screw jack just to take the tension off the shock. You can use a floor jack or even a jack stand. Now I can use a 13/16-inch wrench or a 21-millimeter wrench, put it on the nut right here, and then a 21-millimeter socket, take this bolt out, and this bolt. All right. So that's separated down there. Now, before I take this bolt out here, I'm just going to loosen up these two bolts for this bracket. I don't have to take the bolts out completely, just loosen them. Use a 15-millimeter socket. That's good. Now I'll take that bolt out. Then take a 15-millimeter socket and an 18-millimeter wrench and loosen this up. Take that bolt out. You can slide that bolt out, watch the brake hose. I'm going to slide that out. And to loosen that bracket up, that just makes sliding this out and the new one back in a lot easier.

Before we install the shock, you just want to exercise the shock, just compress it and let it expand. It's going to get the fluid to go through the system and do its thing properly and then it'll be all set to put in the vehicle. And take the shock and the bolt, slide it in position, watch out for that brake hose. Just like that and get this started up here. And before I tighten that all up, let's put the lower bolt in. Now, there is this washer that is domed up a little bit, now that's going to go right in this position here on the control arm. And you can take the bolt, slide it through. If you have to move the control arm up a little bit, you can move it up. And take the washer and the nut, get that started. Now we'll tighten this and torque this to 52 foot-pounds. I'll just snug these two bolts up. Now I can lower the screw jack. Now put the tire back on. Now we'll torque these lug nuts to 140 foot-pounds in a star pattern, that way it tightens the wheel down evenly. And I'll just go around again, double-check.

2013 - 2016  GMC  Acadia
2013 - 2017  Buick  Enclave
2013 - 2017  Chevrolet  Traverse
2017 - 2017  GMC  Acadia Limited
2009 - 2017  Chevrolet  Traverse
2008 - 2017  Buick  Enclave
2007 - 2016  GMC  Acadia
2007 - 2010  Saturn  Outlook
2008 - 2012  Buick  Enclave
2007 - 2012  GMC  Acadia
2009 - 2012  Chevrolet  Traverse
2008 - 2015  Buick  Enclave
2009 - 2015  Chevrolet  Traverse
2007 - 2015  GMC  Acadia
