How to Replace Power Window Switch 2003-08 Ford Crown Victoria

Created on: 2014-02-28

How to repair, install, fix, change or replace a damaged, worn out, faulty or shorted power window switch on 03, 04, 05, 06, 07, 08, Ford Crown Victoria.

  1. step 1 :Removing the Switch Panel
    • Pry up the switch panel with a flat blade screwdriver
    • Disconnect the door lock wiring harness
    • Disconnect the window switch wiring harnesses
  2. step 2 :Removing the Window Switch
    • Pry out the tabs on the back of the window switch with a flat blade screwdriver
  3. step 3 :Installing the New Window Switch
    • Push the window switch into place until it clicks
  4. step 4 :Installing the Switch Panel
    • Connect the door lock wiring harness
    • Connect the window switch wiring harness
    • Push in the window switch panel

Brought to you by 1AAuto.com, your source for quality replacement parts and the best service on the Internet.

Hi, I'm Don from 1A Auto. I hope this how-to video helps you out, and the next time you need a part for your vehicle, think of 1AAuto.com. Thanks.

In this video, we're going to show you how to replace a power window switch on this 2004 Ford Crown Victoria. We show you on the passenger side, but both rear doors are a similar procedure. The only items you'll need include a new power window switch from 1AAuto.com and a flat blade screwdriver.

Using a flat blade screwdriver, just pry up this switch panel and pull straight up to release that last clip. Then push the tab on both of these harnesses and pull them free.

Now pry up the tabs on the back of the switch. There's two on one side and one on the other. Once you've pried them each out the switch will pull right out.

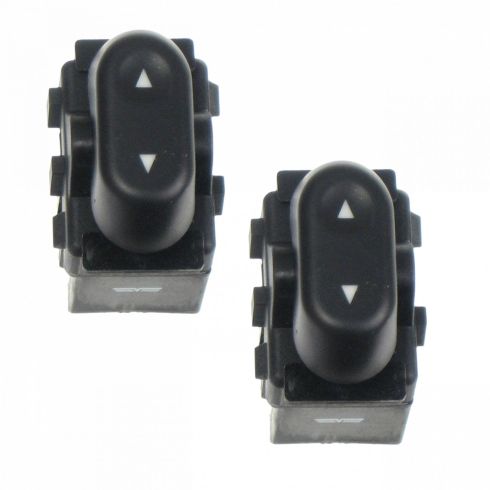

On the left is the old switch; on the right is the new one from 1A Auto. You can see they're identical, and they're going to mount exactly the same. Take your new one and push it into place. Reconnect your harnesses and then push the back end of the panel in first, and then push the front then and you're all set.

We hope this video helps you out. Brought to you by www.1AAuto.com, your source for quality replacement parts and the best service on the Internet. Please feel free to call us toll-free, 888-844-3393. We're the company that's here for you on the Internet and in person.

2003 - 2004  Mercury  Marauder
2003 - 2008  Ford  Crown Victoria
2003 - 2006  Ford  Expedition
2004 - 2004  Ford  F150 Truck
2005 - 2008  Ford  F150 Truck
2006 - 2008  Lincoln  Mark LT
2003 - 2008  Mercury  Grand Marquis
2004 - 2008  Ford  F150 Truck
