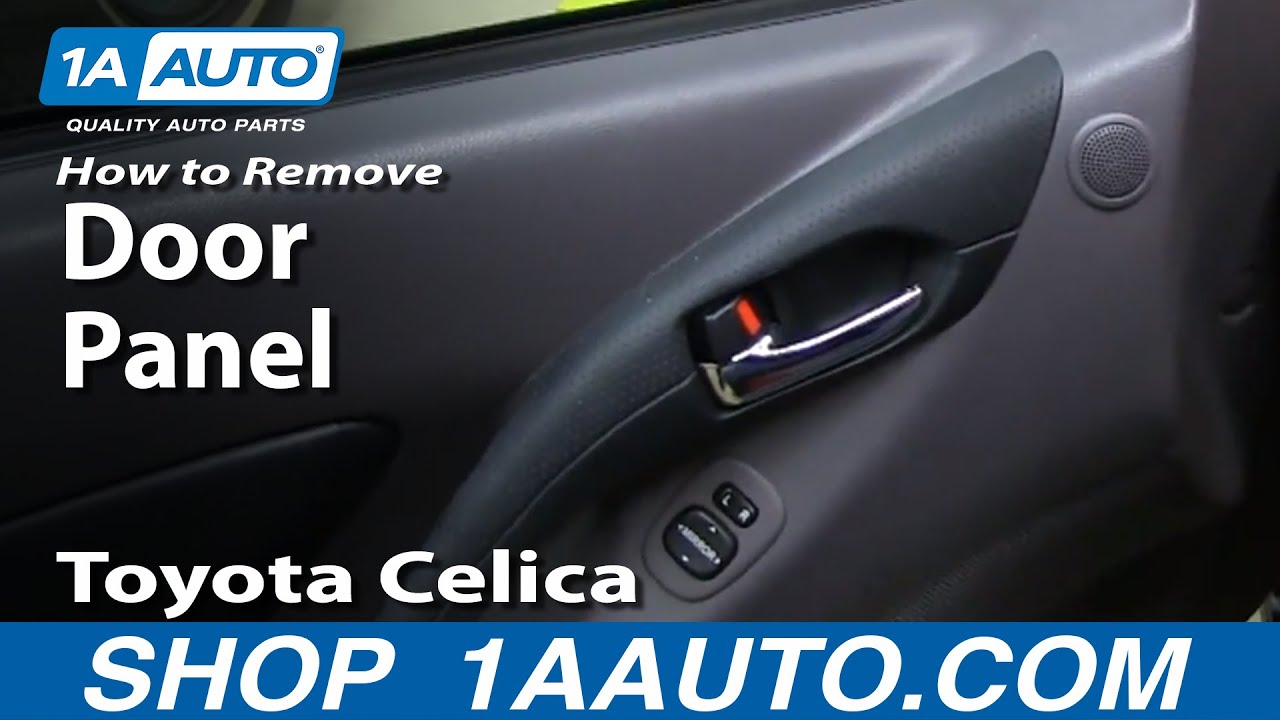

How To Remove Door Panel 2000-05 Toyota Celica
Created on: 2013-11-05
If you need to remove or replace the interior door panel, check out this video and learn how
-
step 1 :Removing the Door Panel
- Pry off the mirror base trim piece with a flat blade screwdriver
- Pry off the trim piece inside the door handle with a flat blade screwdriver
- Pry off the two circular trim pieces next to the speaker
- Remove the two Phillips screws
- Remove the Phillips screw inside the door handle
- Remove the Phillips head screw underneath the door pull
- Remove the two Phillips screws at the bottom of the door panel
- Pry up the mirror switch panel with a flat blade screwdriver
- Disconnect the mirror switch wiring harness
- Pry out the door panel
- Lift the door panel up and off
- Disconnect the latch cables from the door handle
-
step 2 :Installing the Door Panel
- Connect the latch cables to the door handle
- Lift the door panel into place
- Push in the door panel clips
- Connect the mirror switch wiring harness
- Push in the mirror switch panel
- Insert the two Phillips screws at the top front corner of the door panel
- Push on the trim pieces at the top front corner of the door panel
- Insert the Phillips screw into the door handle
- Push on the trim piece inside the door handle
- Insert the Phillips screw underneath the door pull
- Insert the two Phillips screws at the bottom of the door panel
- Push on the mirror base trim piece
Tools needed
-
Flat Blade Screwdriver
Phillips Head Screwdriver
Brought to you by 1AAuto.com, your source for quality replacement parts and the best service on the Internet.
Hi, I'm Mike from 1A Auto. I hope this how-to video helps you out, and next time you need parts for your vehicle, think of 1AAuto.com. Thanks.
In this video, we show you how to remove and replace the door panel on this 2000 Toyota Celica. The tools you need include a flat blade screwdriver and a Phillips screwdriver.
To start off, you just want to remove this little triangular panel up here, as well as these two little caps. Behind the door handle, this little bezel here just pries right out. You've now uncovered these three Phillips screws. You want to just go ahead and remove those. We'll fast-forward as Don does this.
At the bottom of the door panel, you'll see there are three more Phillips screwdrivers. There's one there, and then there's two down here. Again, we'll just fast-forward as Don removes those. Remove your power mirror switch if you have one by prying up on the back side, pulling it up and out. Then there's a little tab on the harness. Press the tab and disconnect. Now you can just pry out around the door to release the clips on the back. Then the door panel, just lift up and pull out. Pull back on these cables, and then forward to release them. The door panel is free.
To reinstall your door panel, it's just a reverse of the procedure. Take these cables, put them in. You can clip them back into the handle. As you bring it close, put the mirror harness through the door panel. Then you want to line up that panel up into the window sill there, and push it down into place.
Now you want to just hit around the panel to reengage those clips. You can reconnect your power mirror switch, and just push it down into place. We'll fast-forward here as Don replaces those six Phillips screws in the door panel. Then replace the bezel behind the door handle, the triangular panel, and those two caps.
