How to Replace Washer Fluid Pump 2007-13 Nissan Rogue
Created on: 2017-04-19
How to repair, install, fix, change or replace a broken, damaged, or failing windshield washer pump on 09 Nissan Rogue
-
step 1 :Removing the Bumper
- Remove the eight plastic clips from the top of the bumper with a trim tool
- Pry the plastic clip from each wheel liner with a trim tool
- Remove the 10mm bolt inside each wheel liner
- Remove the six plastic pins from the bottom of the bumper with a trim tool
- Remove the three T20 Torx bolts from the bottom of the bumper on each side
- Disconnect the fog light wiring harnesses if you have fog lights
- Pull the bumper forward and off the vehicle
-
step 2 :Removing the Windshield Washer Pump
- Have a drain pan ready
- Disconnect the windshield washer pump electrical connector
- Pry the pump out of the washer fluid reservoir
- Allow the fluid to drain
- Disconnect the two hoses from the washer pump
-
step 3 :Installing the Washer Pump
- Connect the two hoses to the washer pump
- Pop the washer pump into the pump grommet on the reservoir
- Connect the washer pump electrical connector
-
step 4 :Installing the Bumper
- Lift the bumper into place
- Pop in the bumper tabs
- Push the eight plastic clips onto the top of the bumper
- Insert the 10mm bolt inside each wheel well into the bumper
- Push the wheel liners into place
- Push the plastic clip into each wheel liner
- Install the three T20 screws into each side of the bottom of the bumper
- Line up the bumper with the air dam
- Insert the six plastic clips into the bottom of the bumper
-
step 5 :Filling the Washer Fluid Reservoir
- Open the reservoir cap
- Fill the reservoir to the top with washer fluid
- Close the reservoir cap
Tools needed
-
Socket Extensions
Flat Blade Screwdriver
T20 Driver
Drain Pan
10mm Socket
Ratchet
Trim Tool Set
Hi, I'm Mike from 1A Auto. We've been selling auto parts for over 30 years. We're dedicated to delivering quality auto parts, expert customer service, fast and free shipping, all backed by our 100% satisfaction guarantee. Visit us at 1AAuto.com, your trusted source for quality auto parts.
In this video, we're going to be working with our 2009 Nissan Rogue. We're going to show you how to remove and replace your vehicle's washer fluid pump. If you like this video, please click subscribe. We have a ton more information on this and many other vehicles. If you need parts for your car you can follow the link down in the description over to 1AAuto.com. Here are the items you'll need for this repair.
Remove the eight plastic clips securing the top of the bumper fascia onto the vehicle. You can use a trim tool, needle nose pliers, or a flat blade screwdriver to pop up the center section, like this, and it will grab and pull the entire piece out.
We have one plastic push pin here, just like the one we had on the top that you'll want to pop out the same way. Now you should be able to peel back the inner wheel liner just enough to remove this 10 mm screw. We'll do that using a 10 mm socket and ratchet. We'll then repeat these steps on the opposite side. Remove six more plastic push pins on the bottom of the bumper. On this wind dam, we're missing one here. Remove those the same way with our trim tool.
Remove the three T20 Torx screws. I'm using a Torx screwdriver, you can also use a Torx bit and ratchet. Remove these, and then our vehicle does not have fog lights, but if yours does your best bet is going to be to peel this back, and reach up there to disconnect them. Repeat these steps on the opposite side. Now once everything's detached, you may want the help of a friend to pull the bumper forward and off of its tabs. Don't be afraid to give it a good yank, and place your bumper somewhere safe. The best way to store these is usually like this on a pair of saw horses or a table large enough to support it.

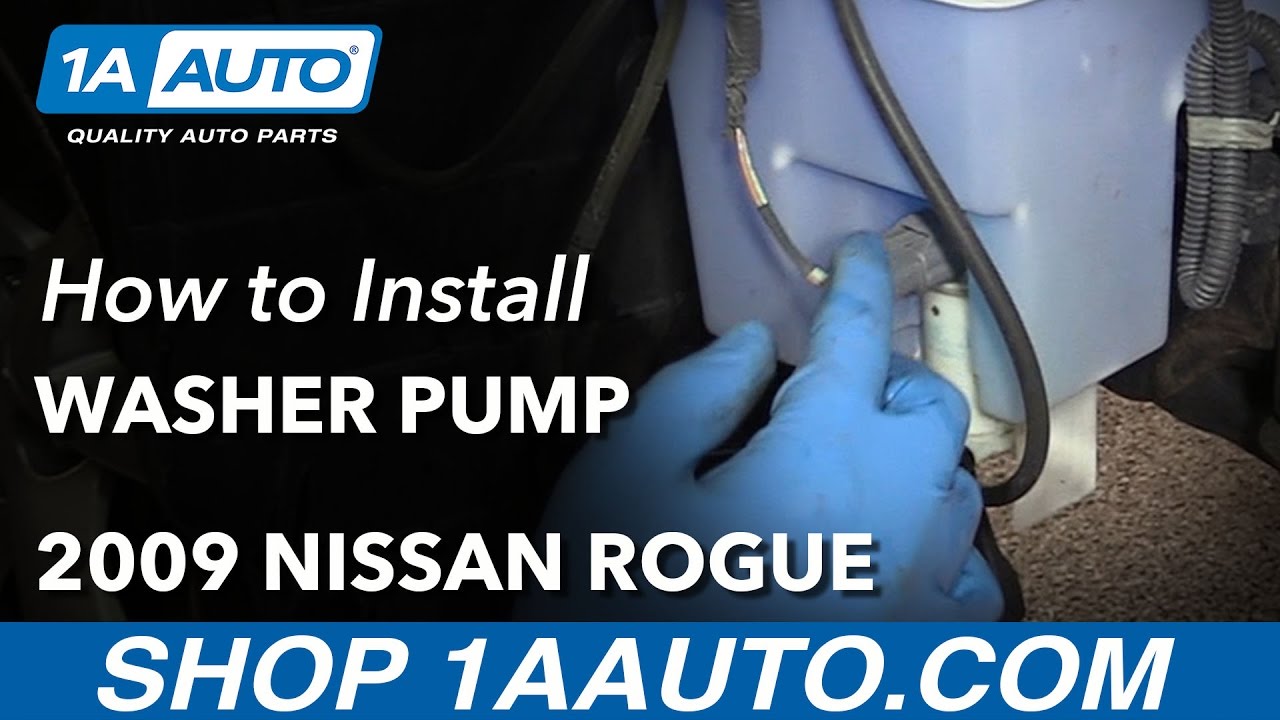

Your washer fluid reservoir is located behind the bumper, underneath the passenger headlight. Be sure that there is a 5 gallon bucket underneath your washer fluid reservoir. Remove the electrical connector on the washer fluid pump and then carefully pry the pump backwards and out of the reservoir and into the bucket. Remove the hoses from the ends of your washer pump.
Install the lines onto your new washer pump. Pop it back into the grommet in the bottom of the tank and snap it into its retainers. Reinstall the electrical connector.
Using the help of your friend, reinstall the bumper. Make sure the top lines up, and you'll want to set the sides in and simply pop them into place. Reinstall the eight plastic trim clips by setting them into the openings and then popping the center section back into place. Reinstall the 10mm bolt into the corner of the bumper at the fender, then set your wheel liner back into place. Don't forget the plastic clip. Repeat these steps on the opposite side.
Reinstall the three T20 Torx screws on the bottom of the bumper fascia on each side. Also reinstall the six plastic clips, securing the air dam to the bottom of the bumper fascia.
Once you've finished making your repairs, you can refill your washer fluid reservoir.
Thanks for watching. Visit us at 1AAuto.com for quality auto parts, fast and free shipping, and the best customer service in the industry.
