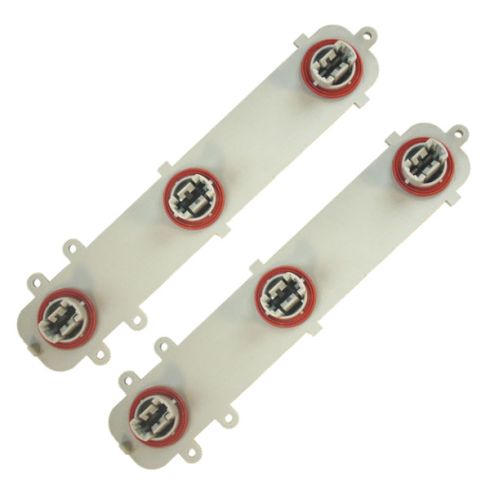

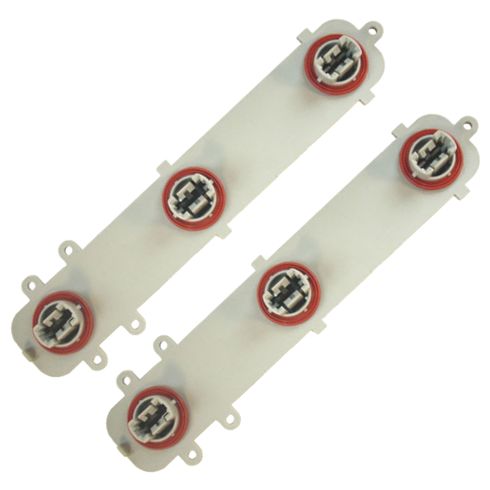

How to Replace Tail Light Circuit Board 02-09 Chevy Trailblazer

Share on:

How to Replace Tail Light Circuit Board 02-09 Chevy Trailblazer

Created on: 2021-01-16

How to install, repair, fix, change or replace a broken, damaged, burned out, cracked, faded, cloudy or chipped taillight circuit board on 02, 03, 04, 05, 06, 07, 08, and 09 Chevy Trailblazer models.

  1. step 1 :Removing the Taillight Connector Plate
    • Remove the two Phillips screws on the side of the taillight.
    • Pull the taillight out and off.
    • Disconnect the harness.
    • Remove the three screws
    • Pull the connector plate off.
  2. step 2 :Replace the Taillight Connector Plate
    • Remove the bulbs and push them into the new connector plate.
    • Push the new connector plate into place.
    • Replace the three screws.
    • Reconnect the harness.
    • Line up and the taillight and push it into place.
    • Replace the two Phillips Screws.

Tools needed for replacement

  • Screwdrivers & Related

    Phillips Head Screwdriver

Installation Video
Watch video

Brought to you by 1AAuto.com your source for quality replacement parts and the best service on the internet.

This video we're going to show you how to replace the taillight connector plate in this 2004 Chevy Trailblazer. Pretty easy job, you just need a Phillips screwdriver and this is usually a problem if your lights are malfunctioning, but the bulbs all seem to be fine.

Start by removing two Phillips screws. Once you have those screws out you just want to kind of pull on your lamp and it comes out pretty easy. There are two tabs here that go here and disconnect your harness there's a little tab right here. Now this board can get shorted out, we just want to replace it. We just want to remove three screws. You can see that the bulbs are in this, you just want to remove the bulbs, put them in for the new one and. Screw back in. Now take your white two tabs, you can line them up here. First, see the connector plate plugs right in and then just kind of look from the side here, see those tabs go in. Should be all set.

We hope this helps you out. Brought to you by www.1AAuto.com your source for quality replacement parts and the best service on the internet. Please feel free to call us toll free 888-844-3393. We're the company that's here for you on the internet and in person.

Tools needed for replacement:

    Screwdrivers & Related

  • Phillips Head Screwdriver
