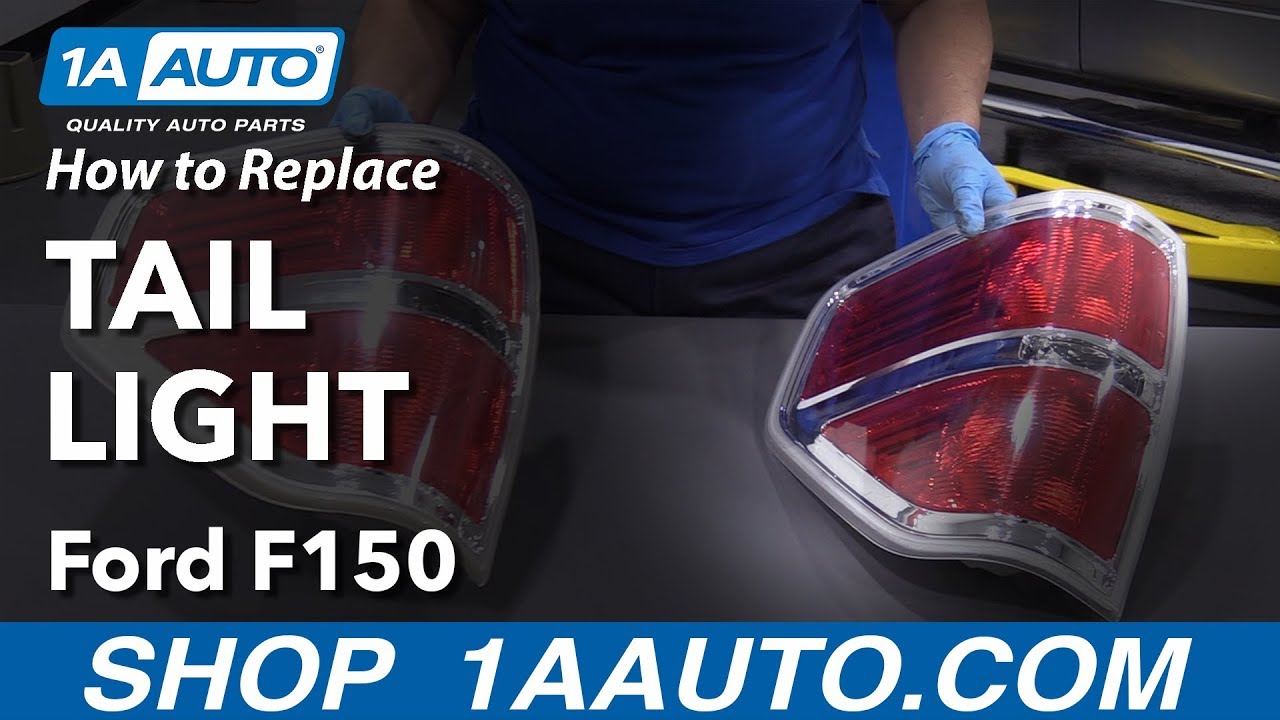

How to Replace Tail Light Assembly 2009-14 Ford F-150
Created on: 2018-11-12
How to install, repair, fix, change or replace a broken, damaged, burned out, cracked, faded, cloudy or chipped tail light / brake lighton 09, 10, 11, 12, 13, 14 Ford F150
-
step 1 :Removing the Tail Light
- Lower the tailgate
- Remove the 8mm bolts from the tail light
- Pry the tail light out with a trim tool
- Pull the tail light straight out
- Turn the sockets counterclockwise
-
step 2 :Installing the Tail Light
- Peel off the protective film from each socket
- Turn the socket clockwise
- Connect the wiring harness
- Press the tail light into place
- Tighten the 8mm bolts to the tail light
- Raise the tailgate
Tools needed
-
8mm Socket
Ratchet
Trim Tool Set
2009 - 2009 Ford F150 Truck
2010 - 2014 Ford F150 Truck
2009 - 2014 Ford F150 Truck
