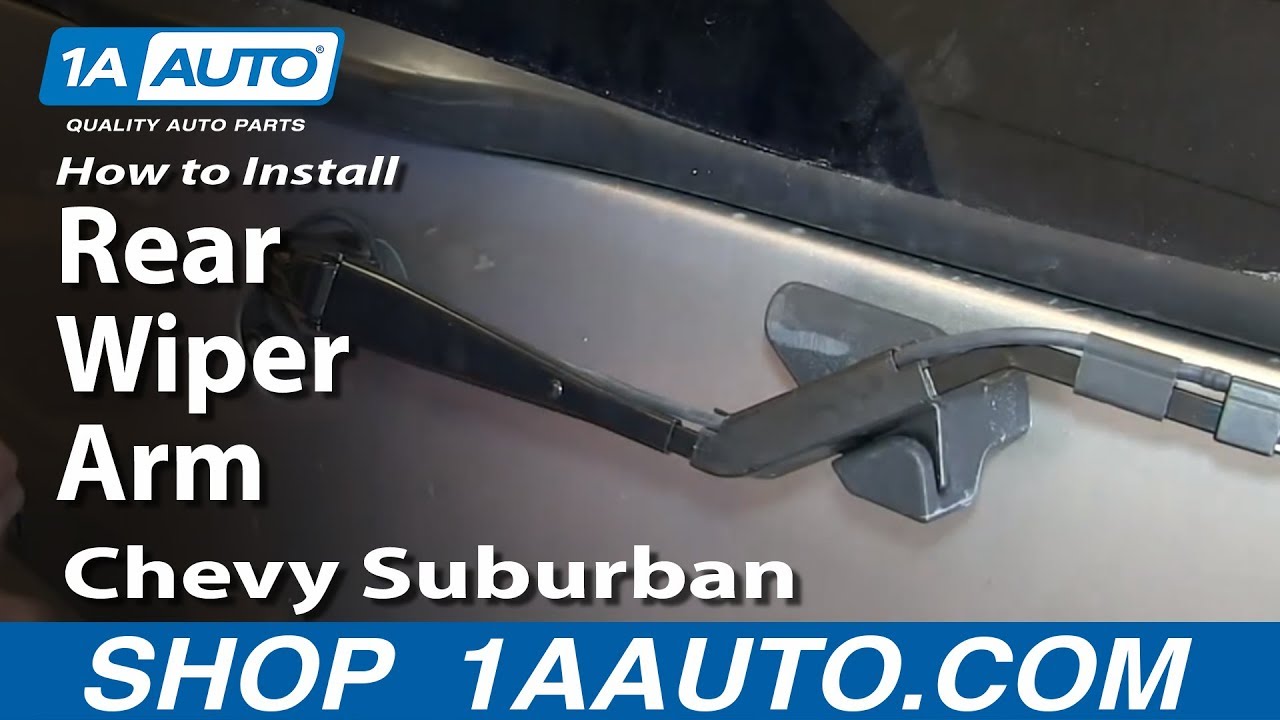

How to Replace Rear Wiper Arm 2000-06 Chevy Suburban
Created on: 2014-05-05
Learn to replace the rear wiper arm easily yourself with this short how-to video
-
step 1 :Removing the Wiper Arm
- Pry off the wiper arm cap
- Remove the 13mm nut from the wiper arm
- Disconnect the washer hose from the wiper arm
- Turn the wiper arm and pull it off from the stud
-
step 2 :Disconnecting the Wiper Blade
- Pull the wiper blade back and push on the tab
- Slide the wiper blade down and off the arm
-
step 3 :Installing the Wiper Arm
- Place the wiper arm onto the stud
- Align the wiper arm
- Replace the 13mm nut and cap onto the wiper arm
- Reconnect the washer hose
-
step 4 :Reconnecting the Wiper Blade
- Slide the hook through the wiper blade
- Slide the wiper blade up onto the hook till it clicks
Tools needed
-
13mm Socket
Ratchet
Brought to you by 1AAuto.com, your source for quality replacement parts and the best service on the Internet.
Hi, I'm Don from 1A Auto. I hope this how-to video helps you out, and the next time you need a part for your vehicle, think of 1AAuto.com. Thanks.
In this video, we're going to show you how to replace the rear wiper arm on this 2002 Chevy Suburban. It's a similar procedure for this generation Suburban from 2000 to 2006, as well as some of the other GM SUVs: Tahoe and Yukon. You'll need a new wiper arm from 1AAuto.com and a 13mm socket, and a ratchet or wrench.
Pull back this cover and remove this 13mm nut. Then disconnect the washer hose, and turn the wiper arm until it breaks free and you can pull it from the stud. Pull back the wiper blade, push the tab, and slide the blade down and off the arm.
In the back is the old wiper arm; up front is the new one from 1A Auto. You can see they're identical, and they're going to fit exactly the same. Take your new wiper arm, push it onto the stud, and replace that 13mm nut. Put the cover down, reconnect your washer hose, and then slide your wiper blade back up onto the hook until it clicks. Then you're all set.
We hope this video helps you out. Brought to you by www.1AAuto.com, your source for quality replacement parts and the best service on the Internet. Please feel free to call us toll-free, 888-844-3393. We're the company that's here for you on the Internet and in person.
