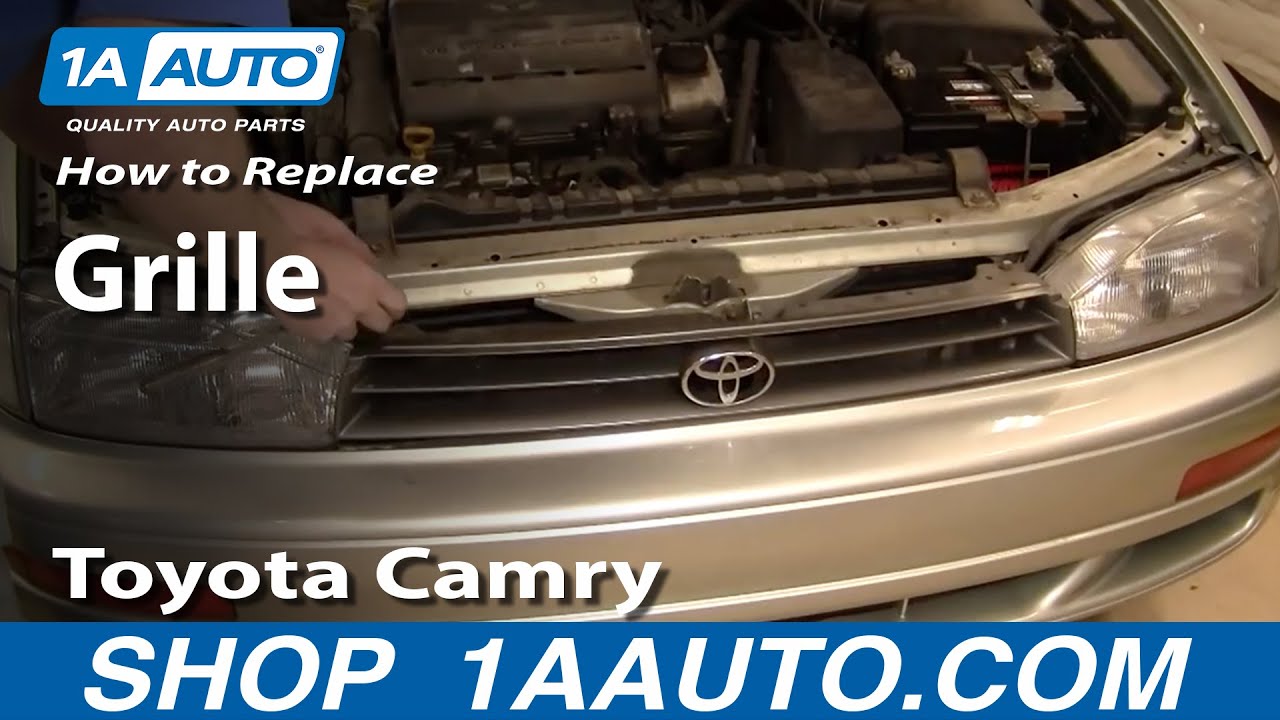

How to Replace Grille 1992-94 Toyota Camry
Created on: 2011-01-10
How to repair, install, fix, change or replace a broken, or ripped off radiator grilleon 1992-1994 Toyota Camry models.
-
step 1 :Removing the Grille
- The example vehicle may have been altered; your fasteners may vary
- Remove the two 10mm bolts from the top of the grille
- Pull the grille up and off
-
step 2 :Transferring the Emblem to the New Grille
- Remove the two Phillips head screws from the emblem
- Pull the emblem off of the old grille
- Put the emblem into place on the new grille
- Insert the two Phillips head screws into the emblem
-
step 3 :Installing the New Grille
- Push the new grille into place using the center locating pin
- Push in the tabs on each side of the grille
- Insert the two 10mm bolts into the grille
Tools needed
-
Phillips Head Screwdriver
10mm Socket
Ratchet
Brought to you by 1AAuto.com, your source for quality replacement parts and the best service on the Internet.
In this video, we're going to show you how to replace the front grille on this '94 Camry. The only tools we used were a 10mm socket and ratchet, although our fasteners didn't look like they were the correct ones, so you may have different size bolts or you may even have screws that fasten the top of the grille on.
To remove the front grille, you can see on ours it's actually broken here, but there's two bolts. On this vehicle they're 10mm bolts, although they don't look very factory to me, so your vehicle could have different bolts or screws. There's two bolts on the top and then there's clips down at each corner. It's actually fairly easy to remove. Now, once you have those bolts out, you just lift up. There are two clips under here that go down into the headlights. The grille's out.
You're going to want to remove your Toyota emblem. There are two screws in the back here: Phillips. You're going to want to really press hard in and you might even want to try to move them to the clockwise just a little bit to break them loose. Put the emblem into the new grille.
The new grille has a locater pin here that was broken off on the original one. It goes right into a hole in the center. Then you want to press one side in and press the other side down in and put in our two bolts
We hope this video helps you out. Brought to you by www.1AAuto.com, your source for quality replacement parts and the best service on the Internet. Please feel free to call us toll-free, 888-844-3393. We're the company that's here for you on the Internet and in person.
