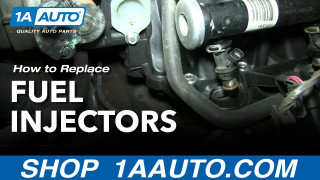

How to Replace Fuel Injectors 2001-06 Chevy Suburban

Created on: 2014-06-19

Watch this video to learn how to fix your fuel injectors. The experts at 1A Auto show you how to replace the fuel injectors on your 00-06 Chevy Suburban, Tahoe, or Silverado; or GMC Yukon or Sierra.

  1. step 1 :Depressurizing the Fuel Lines
    • Start the vehicle
    • Open the fuse box
    • Pull off the fuel pump relay, using pliers if necessary
    • Let the engine run out of gas and turn off
    • Turn off the ignition
    • Push on the fuel pump relay
  2. step 2 :Removing the Fuel Injector
    • Remove the 8mm bolt from the engine cover
    • Pull off the engine cover
    • Remove the four 10mm bolts from the fuel rails
    • Pry up the fuel rail with a pry bar
    • Disconnect the fuel injector wiring harness
    • Pry off the fuel injector clip with a flat blade screwdriver
    • Put a cloth rag under the fuel injector
    • Pull off the fuel injector
  3. step 3 :Installing the New Fuel Injector
    • Push the new fuel injector onto the fuel rail
    • Push on the fuel injector clip
    • Push the fuel rail down into place
    • Insert the four 10mm bolts into the fuel rail
    • Connect the fuel injector wiring harness
    • Push the engine cover into place
    • Insert the 8mm bolt into the engine cover

Tools needed

  • Flat Blade Screwdriver

    Pry Bar

    8mm Socket

    10mm Socket

    Slip-Joint Pliers

    Ratchet

    Cloth Rags

Brought to you by 1AAuto.com, your source for quality replacement parts and the best service on the Internet.

Hi, I'm Don from 1A Auto. I hope this how-to video helps you out, and next time you need parts for your vehicle, think of 1AAuto.com. Thanks.

In this video, we're going to show you how to replace a fuel injector on this 2002 Chevy Suburban with the 5.3 liter V8 engine. It's the same part and similar process on these Suburbans from 2001 to 2004. The items you'll need for this are a new fuel injector from 1AAuto.com, an 8 and 10 millimeter socket and ratchet, and a flat blade screw driver. Start the vehicle and come over here to the fuse box, open it up, find the fuel pump fuse, and pull up on the relay. You may need to use pliers to do it. Then just let the vehicle turn itself off as it runs out of gas. Turn off the ignition switch and replace your fuel pump relay.

Now remove this 8 millimeter bolt in your engine cover. Fast forward as Don does this. Because this is a V8, you have four fuel injectors on either side of the engine, eight in total. To get access to them you want to remove these four 10 millimeter bolts, two on each fuel rail. We'll just fast forward as Don removes those. Pry up on the side that you're intending to change the fuel injector on. Then just lift up on this clip, and pull it out of the harness, and then push the small tab on top of the actual harness and disconnect it. Then, using a flat blade screwdriver, pry out this clip. Tuck a rag underneath the fuel injector. Then pull it free. Some fuel will come out.

Push your new fuel injector into place. Replace this clip. Push the fuel rail back down into place and replace those four 10 millimeter bolts. We'll just fast forward as Don does that and tightens those up. Reconnect the harness, and then, push that clip back down into the harness. Put your engine cover back into place. Then tighten up that 8 millimeter bolt. You're all set.

We hope this video helps you out. Brought to you by www.1AAuto.com, your source for quality replacement parts and the best service on the Internet. Please feel free to call us toll-free, 888-844-3393. We're the company that's here for you on the Internet and in person.
