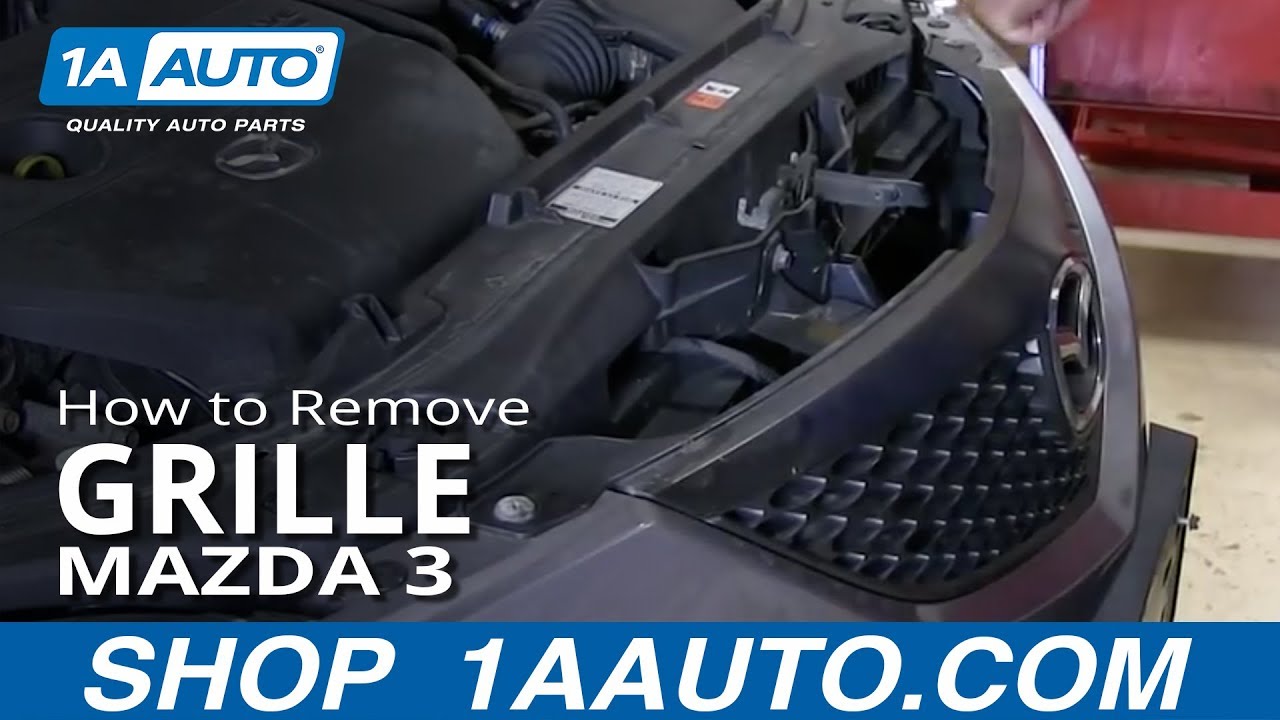

How To Replace Front Grille 2003-09 Mazda 3
Created on: 2013-08-05
If the grille or emblem needs to be replaced, this short video will show you how to do it yourself
-
step 1 :Remove the Grille
- Remove the two Phillips screws at the edge of the grill.
- Pull out on the grill, putting pressure on the six clips holding it on.
-
step 2 :Removing the Emblem
- On the back of the grille, push in the emblem tabs to release it from the grill.
-
step 3 :Installing the New Grille
- Push the emblem in to place.
- Line up the grill on the car and snap it into place.
- Reinsert the two Phillips screws.
Tools needed
-
Flat Blade Screwdriver
Phillips Head Screwdriver
Brought to you by 1AAuto.com, your source for quality replacement parts and the best service on the internet.
Hi, I'm Don from 1A Auto. I hope this helpful video helps you out. The next time you need a part for your vehicle, think 1AAuto.com. Thanks. In this video, we're going to show you how to replace the front grill on this 2006 Mazda 3, pretty much the same as a 2004, 2009. The only tools you'll need are a small flat blade screwdriver and a Philips screwdriver.
With your hood open, there are two Philips screws at the outside edges of the grill and we'll fast forward here as you remove those. Then there are six clips, we're pointing to it with a screwdriver here. You pull out on the grill and put some pressure on those clips, you'll see that first one came out without any pressure. Unlock the clips and pull the grill out. Then it comes off. You may want to transfer your original emblems to the new grill, kind of the same thing, there's little tabs that lock it onto the grill. Press the tabs and push it through and you can pull that emblem off if necessary. Put your emblem back on the new grill by snapping it in place.
Then the new grill simply line it up correctly. Be careful as you line all the tabs up. Press it in. Make sure it locks in and then start the two Philips screws at the top. Once you tighten those up, you'll be all set.
We hope this helps you out. Brought to you by www.1AAuto.com, your source for quality replacement parts and the best service in the internet. Please feel free to call us toll-free, 888-844-3393. We're the company that serves you on the internet and in person.
