Created on: 2020-04-01

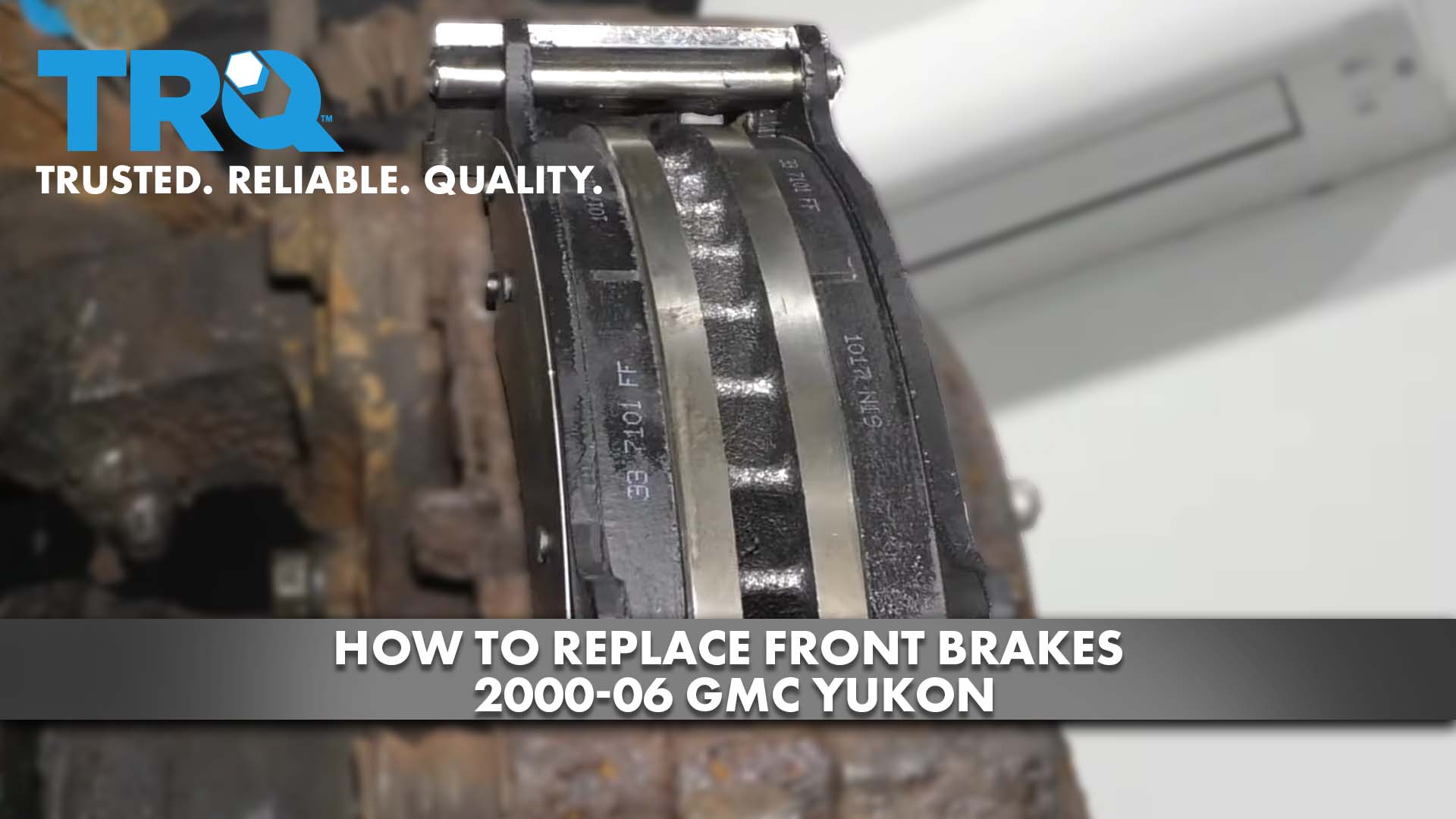

Watch this video to learn how to install new brake rotors and pads on your 2000-06 GMC Yukon.
Torque Wrench
18mm Socket
Brake Parts Cleaner
Safety Glasses
T55 Torx Socket
Gloves
Flat Blade Screwdriver
Copper Anti-Seize
Wheel Chocks
Brake Grease
Brake Caliper Compressor Tool. Quad Piston. Ratchet Style.
Floor Jack
Wire Brush
22mm Socket
Just take this center cap off. Use a straight-blade screwdriver. Get behind here. Use a 22-millimeter socket to take the lug nuts off. Take the wheel off.
We're gonna take these two caliper bolts out. We're gonna use a T55 socket. I'm just going to tap them in, because this is pretty rusty. There we go. Cracked it free. I'll use the gun. That one came right out.
Slide those up. Take a straight-blade screwdriver. Just pry out on the caliper a little bit. Compress the piston and slide the caliper off. We have to flip it over. Good idea to attach it somehow, so it doesn't fall. But if you can get it to sit right there, that's good. And just take the old brake pads off.
Use an 18-millimeter socket. Take these two caliper bracket bolts off. These are normally on there pretty tight. There we go.
All right. Those are broken free. Take those out.
Grab the brackets. Slide it right off.
Grab the rotor. Slide it off. If it doesn't come off that easy, take a hammer and just hit in these areas. Just try not to hit the studs.
Now we're gonna clean up this bracket. Just take a straight-blade pocket screwdriver. Get these clips off. And there's a lot of rust underneath here. Take a wire brush, clean this up. If you have to you can use a file. Just be careful. You don't want to take too much material off.
And take some brake caliper lubricant, and just wipe that down. Brake caliper grease, right there and right there. And take the new caliper slides or anti-rattle clips. Put those on there.
Line it up. Find the right one. Put it on there. Then put a little more brake caliper grease on here. Just a thin coat, just where the pads are gonna make contact.
We ended up replacing the hub, but if you have your old hub on here and it's rusty, take a wire brush. Just clean these areas. Make sure it's smooth.
Take a little bit of anti-seize. Just go around the hub, mostly around the center here, and spread it out, a nice, thin coat.
I'm just gonna take the rotor, put it on backwards. I'm just gonna clean this surface. Use a little brake parts cleaner. I'm gonna wipe it with a rag. There's just that protective coating on there to prevent it from rusting. And flip it over. Do the same on this side and wipe it down.
Now take the old caliper bolts. I'll just put a little thread-locking compound on there, and line the caliper bracket up. It goes this way. And put the bolts in. Get those lined up.
And use a torque wrench and torque these to 129 foot-pounds. Good.
Now install the new brake pads. Now, the warning indicator on the inside is gonna go at the bottom, in just one, not one at the top. And just slide that into position, and the outside one will have both.
That's good. Now I'm gonna compress the caliper. Use a caliper compressing tool. If you have to, use the old brake pad to help you. And just go slow. You don't want to push these in too fast. This is gonna push the brake fluid through the hoses, through the lines, back up into the master cylinder.
All right, those are compressed. Take the tool out. Just make sure the seals look good, the dust seals. And those look good. Now put the caliper back over the pads. Line it into the bracket.
Take the brake caliper pins. Just use a little brake parts cleaner on them. Wipe them off. Get some brake caliper grease. Grease them up and slide the pins back in position. Get them started and tighten them down.
Now I'm gonna torque these bolts to...these caliper guide pins to 80 foot-pounds. There we go.
Then put the wheel back up. Put the lug nuts on.
Now I'm gonna torque these lug nuts to 140 foot-pounds in a star pattern to tighten the wheel down evenly. And just go around again, double check.
Install the center cap. Now just pump the brake pedal. There's gonna be an air gap between the caliper piston and the brake pads. Pump that up. Just go slow, and once it feels good, then you're all set.
And double check your brake fluid level in the brake reservoir. The max line is right there. If you give it a little shake, our fluid is right about there.
