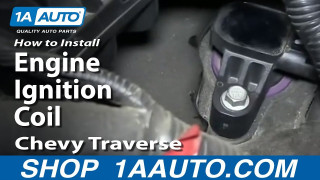

How To Replace Engine Ignition Coil 2009-16 Chevy Traverse
Created on: 2014-01-21
Need to replace the engine ignition coil on your 09-16 Chevy Traverse. Check out this video to learn how you can get the job done yourself!
-
step 1 :Removing the Ignition Coil
- Remove the oil fill cap
- Lift the engine cover up and off
- Replace the oil fill cap
- Disconnect the ignition coil wiring harness
- Remove the 10mm bolt from the ignition coil
- Pull the ignition coil up and out
-
step 2 :Installing the New Ignition Coil
- Insert the ignition coil into place
- Insert and tighten the 10mm bolt
- Connect the ignition coil wiring lead
- Remove the oil fill cap
- Insert the engine cover onto the studs
- Replace the oil fill cap
Tools needed
-
Socket Extensions
10mm Socket
Ratchet
Brought to you by 1AAuto.com, your source for quality replacement parts and the best service on the Internet.
Hi, I'm Don from 1A Auto. I hope this how-to video helps you out, and the next time you need a part for your vehicle, think of 1AAuto.com. Thanks.
In this video, we're going to show you how to replace an ignition coil on this 2012 Chevy Traverse, with the 3.6 liter V6 engine. The items you'll need for this is a new ignition coil from 1AAuto.com, and a 10mm socket and ratchet with an extension.
Start off by removing your oil fill cap. Then lift up on your engine cover, and pull it off. Then replace your oil fill cap. Now because this is a V6 engine, you have three ignition coils on this side. Then you have another three back here on this side. And we're going to show you on one of the ones up front, so it's easier to explain the process. You just push the tab on the harness and pull it free. Then, using a 10mm socket and ratchet, just remove that 10mm bolt. Then pull the ignition coil up and out.
On the right is the old one, on the left is the new one from 1A Auto. You can see they are identical, and will mount exactly the same.
Push your new ignition coil down into place. Then replace that 10mm bolt and tighten it up. Now re-connect your harness, and remove your oil fill cap. You want to line up these holes with these three studs. Just push the engine cover down into place. Then replace that oil fill cap. Then you're all set.
We hope this video helps you out. Brought to you by www.1AAuto.com, your source for quality replacement parts and the best service on the Internet. Please feel free to call us toll-free, 888-844-3393. We're the company that's here for you on the Internet and in person.
