How to Replace Air Flow Meter Sensor 2010-12 GMC Terrain
Created on: 2014-02-07
Watch this video to learn how to replace the mass airflow sensor (MAF) on your 10-14 GMC Terrain. 1A Auto shows you how, step by step!
-
step 1 :Remove the mass airflow sensor
- Unclip the wiring connection from the sensor.
- Unbolt the sensor with your 7/32 inch socket and ratchet.
- Remove the sensor.
-
step 2 :Install the airflow sensor
- Connect the wiring harness clip and insert the airflow sensor into place.
- Bolt the airflow sensor into the intake tube with your socket and ratchet.
Tools needed
-
Ratchet
7/32 Inch Socket
Brought to you by 1AAuto.com, your source for quality replacement parts and the best service on the Internet. Hi, I'm Don from 1A Auto. I hope this how-to video helps you out and the next time you need a part for your vehicle, think of 1AAuto.com. Thanks.

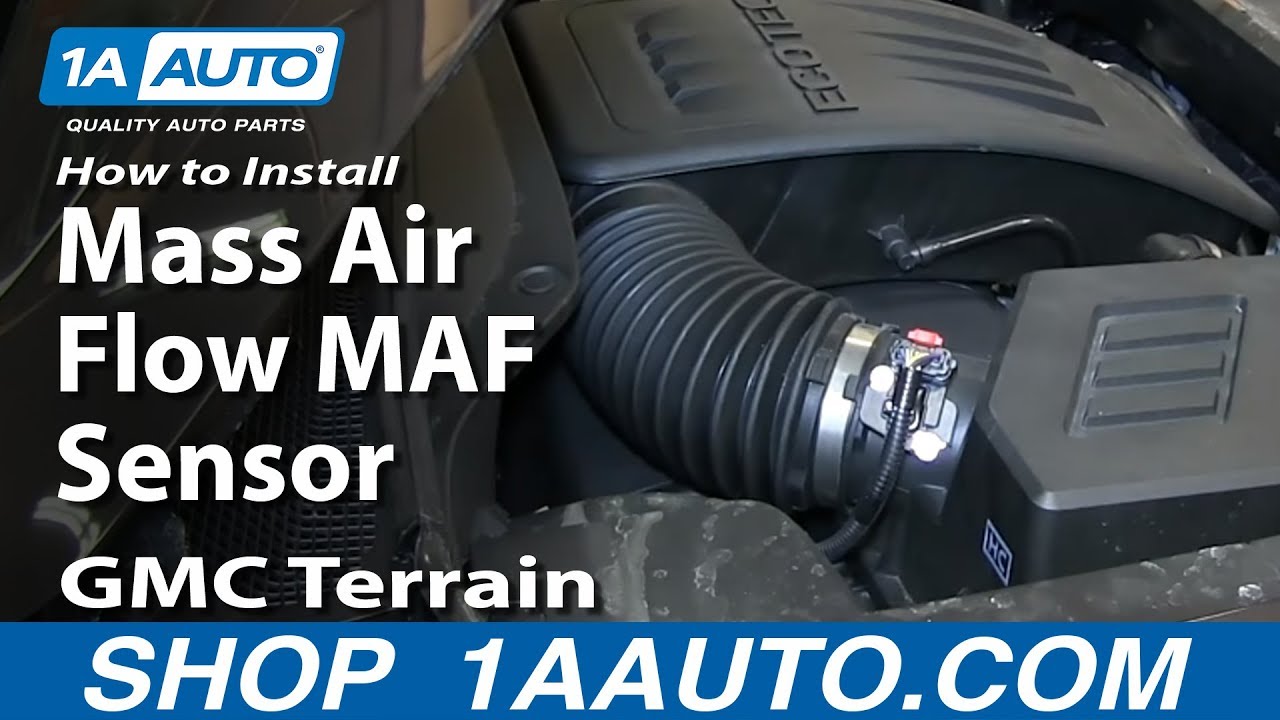

In this video we're going to show you how to replace a mass air flow sensor on this 2014 GMC Terrain. The only tool that you're going to need for this is a 7/32 socket and a ratchet. Your mass airflow sensor's located right here. Push up on the red clip, then push on the tab and pull the harness free. Next, you want to remove these two 7/32 bolts. We'll fast forward as Don does this. Once those are removed, your mass air flow sensor just pulls out. Push your new mass air flow sensor into place and then replace those two 7/32 bolts. Then reconnect your harness, push down the red clip and you're all set.
We hope this video helps you out. Brought to you by 1AAuto.com, your source for quality replacement parts and the best service on the Internet. Please feel free to call us toll-free 888-844-3393. We're the company that's here for you on the Internet and in person.
