How to Remove Horn 2007-10 Hyundai Elantra

Hey friends, it's Len here at 1AAuto. Today, I'm working on a 2007 Hyundai Elantra. I'm going to show you how to remove the horn. It's going to be a very easy job. I want to be the guy that shows you how to do it. If you need any parts, you can always check us out at 1AAuto.com. Thanks.

Okay, so here we go. We're going to go ahead and we're going to take out this bolt right here. There should be one right there. It's broken. That happens. Anyway, we're gonna use a 10 millimeter on this particular application. Turn it to the left counterclockwise so we can remove it. There it is. Super long for no apparent reason. Put that aside. Grab this, put this unit aside. Cool.

All right, so now we can see we've got a couple of little push clips here. They just kind of go along over this way and everything. So all we're going to do, you use two tools. I've got a Phillips head. When you use it, turn to the left. This is going to start lifting this up for me. Once it gets up enough, I can get my screwdriver under there and then I should be able to just pop it right up. Nothing ever works on video. Come on. There it is.

So when this is pushed in, it spreads all those legs and holds it in. Okay, so I'll just remove all these. Here we are. Last one. I'm just going to give this a little wiggle, see if we can get it to move around. It seems like it's coming off pretty well. Perfect. Let's bring the vehicle up a little bit and we'll start taking apart anything that might be coming from the wheel well just in case there's any holding it in there. And then along the bottom, and we should be able to pop this puppy right off.

So right here there's a small bolt that comes through this and then up into the fender. Okay. So I'm just gonna go ahead and remove that. Here it is. You can do the same on the other side of the vehicle and we'll continue bringing the vehicle up.

Okay, so up in here we have our fog lamp assemblies, right? If you wanted to take this wiring harness off of it, all you're going to do is there's a little squeeze tab right here. There's one located right on the other side. We're just going to grab them, squeeze them, give it a little tug, pull it down. I'm going to give that a try. Let's see. Here we are. We'll take a look at the the harness here. Make sure there's no funny colors, no rust or rainbow colors. Everything looks pretty great. We'll set this aside. We'll go over and do the same thing to the other side of the vehicle if I can get in, give those a squeeze, hopefully. Take a peek. Looks pretty clean. That looks great to me. Now we'll move along.

So I'm just going to pull out the clips that are down along the bottom here. Your vehicle may have them going all the way around. This one's missing a whole bunch. So it is what it is, but basically you just want to make sure that you have anything that's holding your bumper cover to anything else like the wheel well and another clip right here. So I'll grab this one. You want to make sure you have all those out. Okay? So if yours has two, take out two. If yours has 20 of them holding it together? Well sorry for you, but we'll keep moving here. All right, I'll put this last one aside. We'll bring the vehicle back down and we'll start going from the top. Start taking this puppy off.

Okay, so we've got all the bumper cover taken apart as much as we can. Now it's time to just grip it and give it a little tug. Here we go. If it seems like it's sticking anywhere, just try to lift it and there we are. Now we've removed our bumper cover, so here we go.

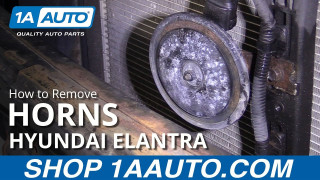

We've located the horn, fairly simple to get to. On the backside of this harness right here, sorry, there's a little push clip. I'm just going to give a little squeeze with my index finger. Give it a tug. We'll show you what it looks like. It's all I did. Just squeeze it. Always want to take a peek at our electrical connectors and make sure there's no funny colors, no rust or rainbow colors or anything. You don't want any of that inside your electrical connectors. We'll put this aside.

Right here there's a 10 millimeter. If you wanted to, you could pop that out, but I feel like I can get to that fairly easily. When you use a 10 millimeter with an extension, I'm just going to pull out that bolt. Bolt out of there. No horn out of here. Here it is. Easy peasy.

Okay, now I'm just going to take my horn assembly. I'm going to put it back where it goes. Hang it here. Start my 10 millimeter in. Here we are bottomed out. Snug it. We'll take our electrical connector. We already checked it out. Give that a little squeeze. We're going to listen for a click. There it is. Easy peasy.

So here we go. Let's get our bumper cover up close to the car. Going to be careful for any paint. You don't want to scratch up any paint. Okay. So it's sitting up here. I'm just going to come along the side. There's a little lip right along the bumper cover. Needs to go up in here. Okay? So whatever you've got to do to make it happen. I just grabbed into where the grill is. Give it a little tug, wiggle it, there we are. Give it a little bonk, bonk, bonk, screw that in.

Same thing on the other side. Screw this side in. Cool. All right. Let's grab some screws and some push pins. We'll move along.

We've got our little push clips. I'm just going to start them in here. You're just pushing the center. Okay? Do the same for all these. Nice. All right, so now let's re-install this right here. We've got a little air duct hole here, one there. Got a little air duct there and one there. So we'll just line those two up. Start with the rearward facing one first. Slide it in and grab the bottom one and we'll just line this up with the holes right here. Start this right in using a 10 millimeter. Tighten it up. It's just rubber there. So we don't need to go too much tighter than that. This one's already broken, so let's go ahead and move underneath and we'll move along.

We've got our little screw. It's going to go right up in the corner of this bumper right under there. Okay? They get lined up with the hole here. You might have to wiggle it around. Here it is. See if I can get this on there. There we are. Perfect. Get that pressed in there. We'll do the same to the other side of the bumper and we'll bring it up and continue on the bottom.

We've got our wiring harness for our fog lamp. You'll notice it's got a little notch out of it. In the fog lamp bulb itself has a little stud coming through, so I'm just going to line up the notch with the stud in the bulb and try to squeeze them together. Get that nice and latched in. Give it a little tug. Feels good. We'll do the same to the other one.

Find our notch. There it is. It goes on the outside. Let's get this lined up, squeeze it up and in. Here we are. Cool. We got a couple push clips. We'll go ahead and get those pushed in real quick. As you can tell, this thing's kind of busted up under here. It's missing a whole bunch of parts. Yours may or may not have any of this. Who knows?

Here we are. We'll go with the assumption that they're all going across here and it looks beautiful. Okay, great job, everybody.
