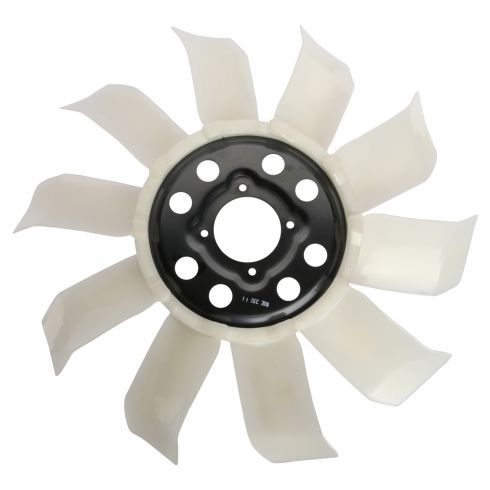

Our aftermarket cooling fans are some of the highest quality replacements on the market! This radiator fan blade assembly is a complete, ready to bolt on, direct replacement part.

Specifications:

  • 9 Blade Design
  • Replaces dealer part number: F3TZ-8600-C, F3TZ8600C
  • Performance tested
  • Direct replacement
  • Geometrically designed plastic blades for optimal circulation and uniform balance
  • Replaces original assemblies that are warped, damaged or missing blades

Now you can buy a high quality fan blade assembly that is built to strict quality control standards. It is a great replacement and has substantial cost savings over a dealer unit.

Our electrical and electronic parts are subject to strict quality control testing .  Once the item has been installed or plugged in, it is no longer eligible for a refund.  The item may be eligible for replacement, only if it is found to have a manufacturing defect. Before purchasing, please ensure proper diagnosis of the failed original part is performed

Lifetime Warranty

This item is backed by a Limited Lifetime Warranty. In the event this item should fail due to manufacturing defects during intended use, we will exchange the part free of charge (excludes shipping charges) for the original purchaser. Please keep your invoice for proof of this warranty.

  1. step : Removing the Intake Tube (1:01)
    • Remove the Phillips head screws from the throttle body cover
    • Remove the 7mm bolt from the throttle body cover
    • Loosen the two clamps on the intake hose
    • Remove the intake tube
  2. step : Removing the Radiator Fan and Shroud (2:00)
    • Remove the 36mm fan clutch nut
    • Some of these next steps are necessary if you don't have the fan clutch nut removal tool
    • Familiarize yourself with the route of the serpentine belt
    • Insert the 3/8 inch drive ratchet into the tensioner
    • Turn the tensioner clockwise to tighten the belt
    • Remove the two 10mm bolts on the water pump pulley
    • Remove the 36mm fan clutch nut
    • Remove the two 10mm bolts atop the fan shroud
    • Remove the fan and shroud together
  3. step : Removing the Clutch (3:54)
    • Remove the 10mm bolts from the fan
    • Remove the fan from the clutch
  4. step : Installing the Clutch (5:05)
    • Insert the fan over the fan clutch
    • Tighten the 10mm bolts to the fan
    • Torque the bolts to 15 foot-pounds in a crossing pattern
  5. step : Installing the Radiator Fan and Shroud (6:13)
    • Insert the fan shroud into place
    • Turn the 36mm nut a couple of threads and hand tighten it
    • Reinstall the two 10mm bolts atop the fan shroud
    • Insert the 3/8 inch drive ratchet into the tensioner
    • Turn the tensioner clockwise to tighten the belt
    • Tighten the fan clutch nut
    • Tighten the two 10mm bolts to the water pump pulley
  6. step : Reinstalling the Intake Tube (8:10)
    • Insert the intake tube into place
    • Tighten the hose clamps with a flat blade screwdriver
    • Reconnect the breather hose
    • Insert the cover into place
    • Tighten the Phillips screw to the cover
    • Tighten the 7mm bolt to the cover

Tools needed for replacement:

    Pliers, Cutters & misc Wrenches

  • Adjustable Wrench

  • Ratchets & Related

  • Socket Extensions
  • 3/8 Inch Drive Ratchet

  • Screwdrivers & Related

  • Phillips Head Screwdriver
  • Flat Blade Screwdriver

  • Sockets - Metric

  • 7mm Socket
  • 10mm Socket

  • Wrenches - Metric

  • 10mm Wrench

There are no reviews for this item. Write Review
Start typing your question and we'll check if it was already asked and answered. Learn More
No questions have been asked about this item. Be the first!

How-to Video:

(09:13 min)

Tools List:

    Pliers, Cutters & misc Wrenches

  • Adjustable Wrench

  • Ratchets & Related

  • Socket Extensions
  • 3/8 Inch Drive Ratchet

  • Screwdrivers & Related

  • Phillips Head Screwdriver
  • Flat Blade Screwdriver

  • Sockets - Metric

  • 7mm Socket
  • 10mm Socket

  • Wrenches - Metric

  • 10mm Wrench



This part replaces:

  • Hollander 325-643
  • OE # F3TZ8600C
  • Dorman 620-112

Vehicle Fit

  • 1990-1997 Ford Aerostar Radiator Cooling Fan Blade V6 4.0L Models with Automatic Transmission
  • 1991-1994 Ford Explorer Radiator Cooling Fan Blade V6 4.0L Models
  • 1985 Ford Mustang Radiator Cooling Fan Blade V8 5.0L Models with Manual Transmission
  • 1986-1993 Ford Mustang Radiator Cooling Fan Blade V8 5.0L Models
  • 1990-2004 Ford Ranger Radiator Cooling Fan Blade V6 4.0L Models with Automatic Transmission
  • 1985-1986 Mercury Capri Radiator Cooling Fan Blade V8 5.0L Models with Manual Transmission
Part #: 1ARFA00095
